Cartridge Water Filter Housings

MDC Water stocks cartridge filter housings in standard 2.5" and 4.5" diameters for under-sink, commercial and industrial pre-treatment use. Single, double and triple stage configurations are available with port sizes from 1/2" through 1.5" BSP. Australian-stocked since 1998 — every housing pairs with cartridges held on the same site.

View Products
Contact Us

Trusted By
-14%

Commercial Big Blue Twin Cartridge Water Filter

Regular price $325.00
Sale price $325.00 Regular price $380.00
Unit price
Designed for places where high flow rate is required whether on home, commercial or industrial...
-15%

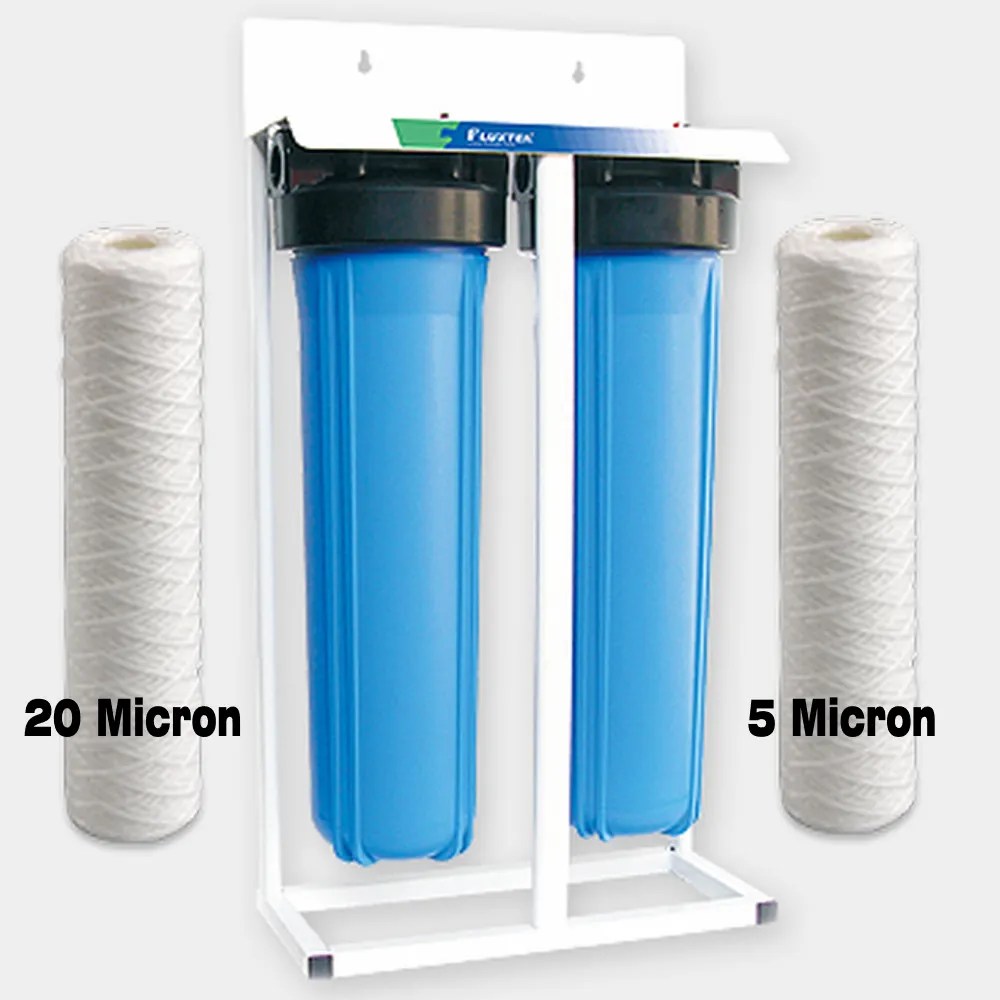

Whole House Big Blue Twin TANK Water Filter with Sediment Cartridges

Regular price $425.00
Sale price $425.00 Regular price $500.00
Unit price
Big Blue Twin TANK Water Filter with Sediment Cartridges A water filter system that is...

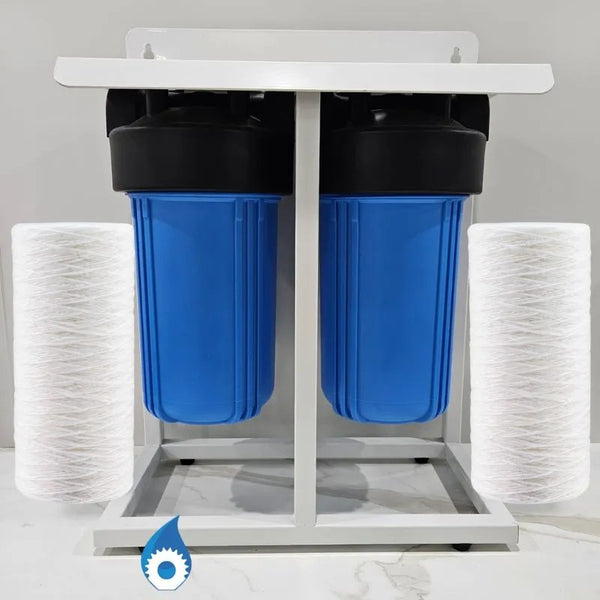

Twin Tank Water Filter with Sediment Cartridges
-19%

Twin Tank Water Filter with Sediment Cartridges

Regular price $355.00
Sale price $355.00 Regular price $440.00
Unit price
Twin TANK Water Filter with Sediment Cartridges A water filter system that is specifically designed...

Featured Products

Twin Tank Water Filter with Sediment Cartridges

Twin Tank Water Filter with Sediment Cartridges

Twin TANK Water Filter with Sediment Cartridges

  • A water filter system that is specifically designed for places where high flow rate is required whether on home, farm commercial or industrial use.
  • Reduces / Removes:
    • Sediment • Dust • Rust, Sludge • Particles bigger than 5 micron
  • Stage (1): 10" x 4.5" x 5 Micron High Quality Sediment Filter is capable of reducing algae, dirt, particles, rust, sand, sediment and silt so your water is debris free and prepared for the second stage of this filtration process. It is a quality String Wound Polypropylene Sediment Filter Cartridge. This filter series has a bigger capacity and a longer lifespan
  • Stage (2): 10" x 4.5" x 1 Micron High Quality Sediment Filter is capable of reducing algae, dirt, particles, rust, sand, sediment and silt so your water is debris free. It is a quality String Wound Polypropylene Sediment Filter Cartridge. This filter series has a bigger capacity and a longer lifespan.



  • Connection: BSP 1".
  • Pressure and air release valve on housing
  • Fully assembled on steel skid for easy installation
  • Whole of House Water Filtration Systems are typically installed near the house pump or where the town water mains enter the house
  • Whole House tank Water Filter improves the quality of water used for drinking, cooking, bathing and washing
  • Whole House Water Filter protects hot water services & household plumbing
  • Indoor use.
  • Maximum pressure: 500kpa.
  • Maximum water temperature: 38C.
  • Comes with a filter housing wrench.
  • Always use a pressure limiting valve if pressure over 450 kpa. Use a water hammer arrestor if water hammer is present.
  • Free shipping Australia wide.



  • This units is for tank water, agricultural, rural use where Watermark certification is not required. It is non-compliant to install filters to town mains water supply under constant hydro-static pressure if they do not have Watermark certification and your plumber may refuse to install this unit to mains supply if you select the option without Watermark.

$355.00

View Product

Standard Diameters & Cartridge Sizes

MDC Water stocks water filter housings in 2.5" and 4.5" diameters, each accepting standard 10" or 20" cartridges. The 2.5" diameter is the slimline standard used for under-sink, RO pre-filtration and light commercial duty — pairs with 10" or 20" sediment, carbon block or GAC cartridges. The 4.5" diameter is the Big Blue standard used for whole-house, high-flow commercial and industrial pre-treatment — pairs with 10" or 20" sediment, carbon and specialty cartridges. Cartridge length sets dirt-holding capacity and service interval; cartridge diameter sets flow rate at acceptable pressure drop.

Port Sizes & Connections

MDC Water filter housings ship with 1/2", 3/4", 1" and 1.5" BSP port options to match site plumbing. The 2.5" housings most commonly run 1/2" and 3/4" ports. The 4.5" Big Blue housings run 1" and 1.5" ports for the higher flow rates that diameter supports. Pressure-release button housings include a top-mounted relief button to depressurise the bowl before service — useful on continuous-pressure mains where a service tap can't be reliably isolated. Standard flat-top housings rely on upstream isolation valves.

Single, Double & Triple Stage Configurations

Multi-stage housing assemblies pair two or three housings on a single mounting bracket for sediment, carbon and specialty cartridge trains. A typical commercial pre-treatment train runs sediment first (5-micron polypropylene), then carbon block (5-micron CTO), with optional third-stage specialty cartridge for taste and odour or chemical removal. Multi-stage assemblies arrive pre-plumbed between bowls, ready to mount and connect. Single-bowl housings remain the right choice for simple under-sink or single-stage replacement duty; multi-stage assemblies suit RO pre-treatment, whole-house, and small commercial builds.
