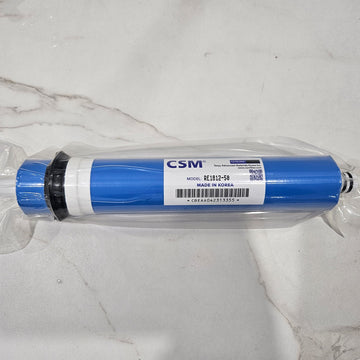

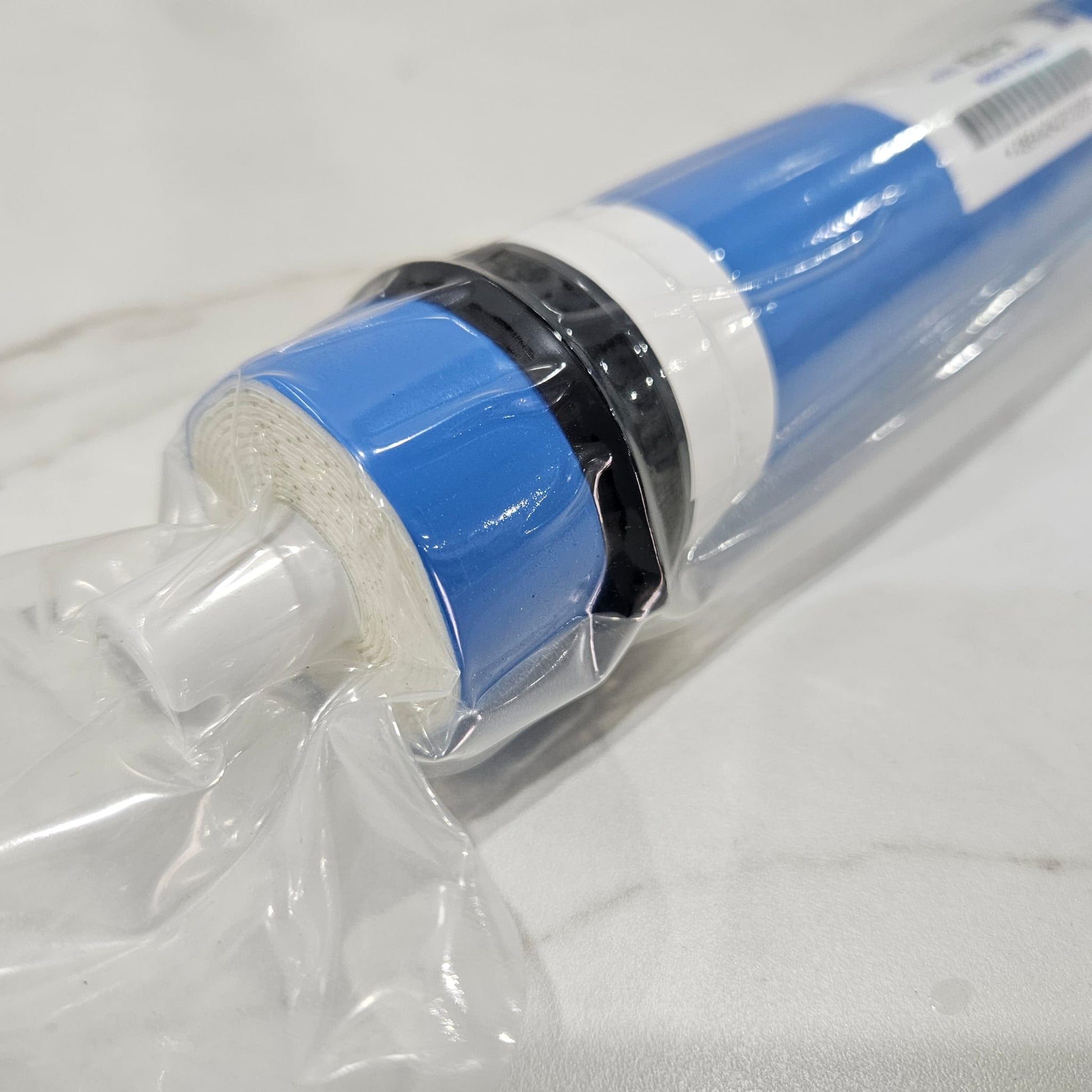

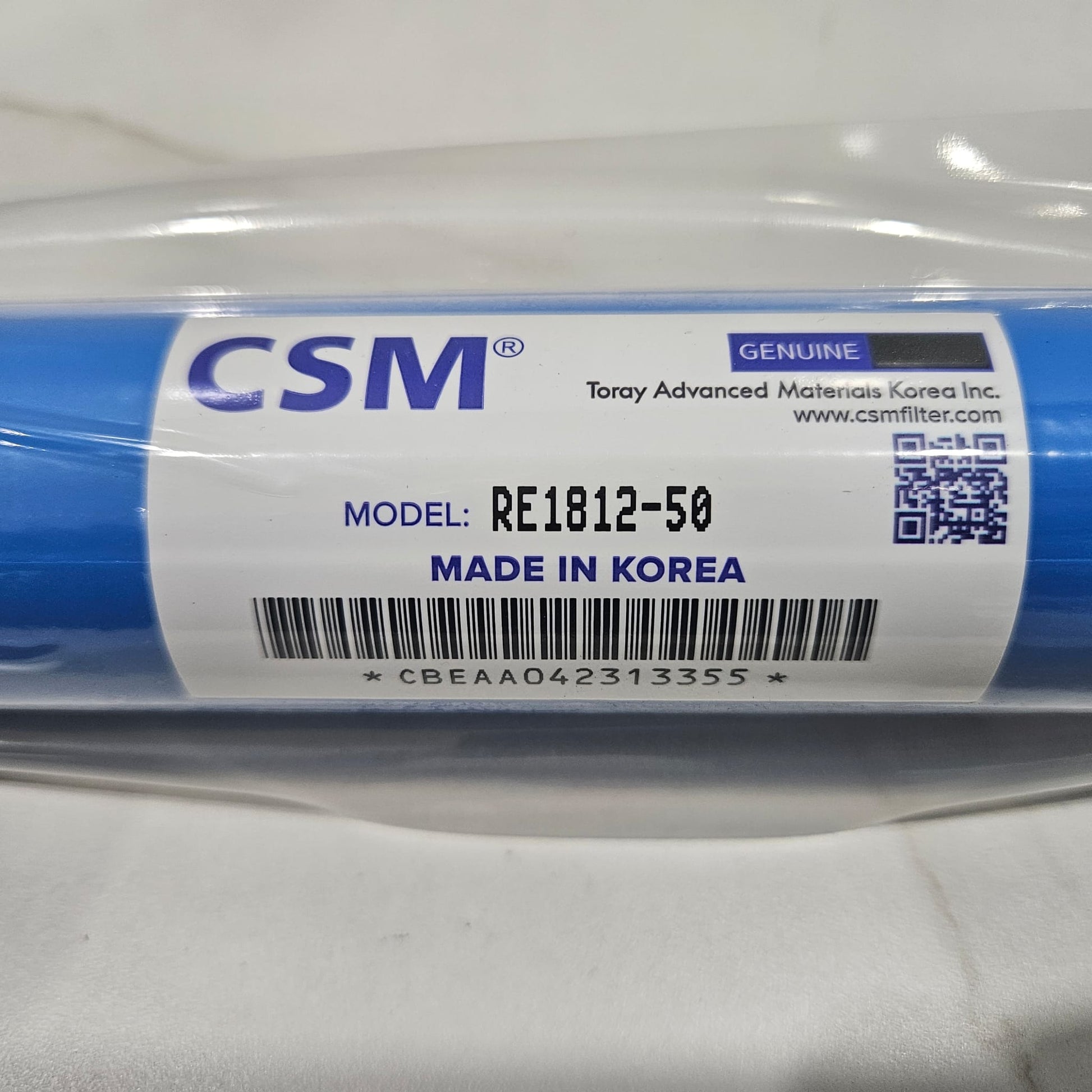

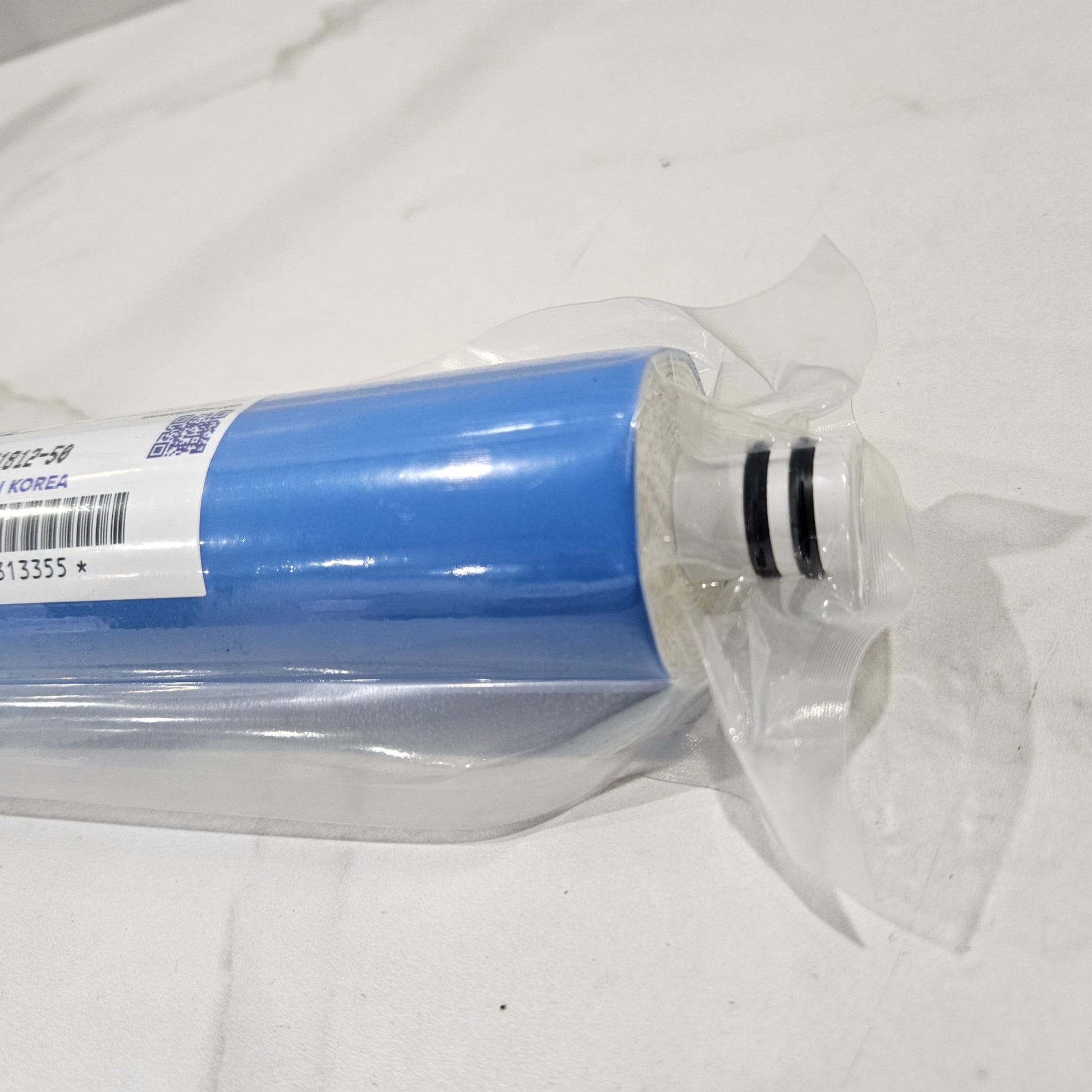

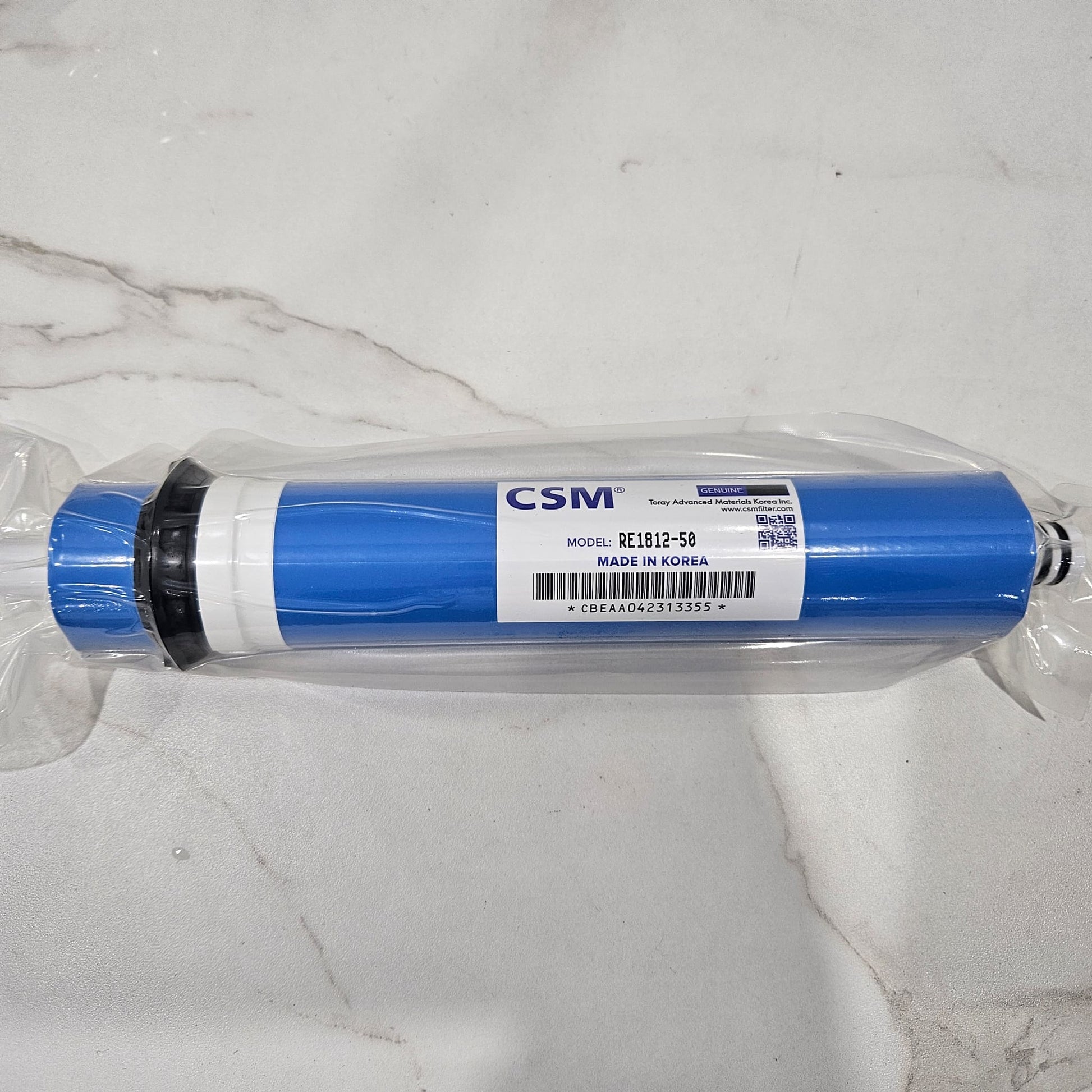

CSM RE1812-50, 70 GPD Reverse Osmosis Membrane
-
Estimated Delivery:Jun 17 - Jun 21
-
Next Day Dispatch
CSM RE1812-50, 70 GPD Reverse Osmosis Membrane
70 GPD Reverse Osmosis Membrane, CSM RE1812-50
NSF certified - Made in Korea
CSM RE1812-50 membrane is widely used in drinking water reverse osmosis, under sink reverse osmosis filters, household water filter, aquariums and other small-scale water purification applications.
Removes salt, heavy metal, ions (mainly calcium and magnesium), bacteria and any many other dissolved solids from mains water.
Fits all standard membrane housings.
Specifications:
|
Permeate Flow Rate GPD (L/Day) |
70 GPD (265L/day) |
|
NaCl Rejection % |
98% (Minimum 96%) |
|
Membrane Type |
Thin-Film Composite Polyamide (PA) |
|
Membrane Material |
Spiral-Wound |
|
Element Configuration |
Tape Wrapping |
* Testing conditions: TDS: 200ppm, Temp: 25C, Recovery: 15%.
Application Data:
|
Max. Operating Pressure |
150 psi (1.03 MPa) |
|
Max. Feed Flow Rate |
2 gpm (0.45 m3/hr) |
|
Max. Operating Temperature |
113°F (45°C) |
|
2.0 – 11.0 |
2.0 – 11.0 |
|
Range Max. Turbidity |
1.0 NTU |
|
Max. SDI (15 min) |
3.0 |
|
Max. Chlorine Concentration |
< 0.1 mg/L |
Diemensions:
|
Model Name |
A |
B |
C |
D |
E |
|
RE1812-50 |
0.67 inch |
0.87 inch (22 mm) |
11.73 inch (298 mm) |
0.87 inch (22mm) |
1.77 inch (45 mm) |
Downlaod RE1812-50 Technical Data Sheet
Replacement membrane for: Dow Filmtec 1812, Filmtec TW30-1812-75, Bw60-1812-75, GE Osmonics, PENTEK, US Water, Culligan, Ametek, US Filter, American Plumber, Kinetico, Watts, Purepro and many more.
Reminder:
- To be used on biologically safe water supply.
-
Flush for:
- 5-10 seconds everyday before first time use.
- 30 seconds when not using for 3 days.
- 2 minutes when first using or replacing the membrane.
