High Flow LED UVC Ultra Violet 50 L/M Inline Water Steriliser
-
Estimated Delivery:Sep 19 - Sep 23
-
Fast & Free Shipping!
High Flow LED UVC Ultra Violet 50 L/M Inline Water Steriliser
Wide Range of Water Disinfection Applications
This high-flow inline LED UVC water steriliser is designed for commercial, agricultural and industrial water treatment applications. With a flow rate of up to 50 L/min, it is ideal for rainwater
whole-house systems, farms, factories, restaurants, schools, hospitals, clinics, pharmaceutical facilities, dialysis water treatment systems, laboratories, offices, hospitality facilities, commercial RO systems and other high-demand applications requiring reliable UVC water disinfection
Its compact inline design makes it easy to integrate into new or existing water treatment systems, providing chemical-free disinfection without affecting the taste or quality of the water.
Note: This product does not hold WaterMark certification. Where WaterMark certification is required under Australian plumbing regulations, please consult a licensed plumber before installation.
Features
Solid 304 stainless steel body
Flow switch automatically turns LED on and of.
UV life reminder: The light Indicator will turn red after 8,000 working hours. It indicates the UV is due to be changed .
Lifespan: 8,000 Hours of Continuous Operation
Mercury-free, chemical-free UV treatment.
Instant on/off UV disinfection with no warm-up time.
Unlimited lamp cycling and compact UV disinfection technology.
For optimal performance, it is highly recommended to use a sediment filter (5 microns or finer) before the UVC steriliser. This helps to prevent sediment particles from obstructing UV light penetration.
UV LED Steriliser is effective on water that meets the following parameters:
Total water hardness <120 mg/L - Iron <0.3 mg/L - Turbidity <1NTU.
Specifications
Max water flow: 50L/min.
Sterilization efficiency: ≧99.99% (Colibacillosis / E.coli)
Operating water temperature: 0-45°C
Connections: 1” female or 3/4″ plastic fittings.
UV wavelength: 260~280nm
Water Pressure: 50 – 600 kPa.
Service life: 24,000,000 litres (50 LPM), 8,000 Hours of Continuous Operation.
Length: 320 mm | Diameter: 61.5 mm.
UVC LED Output Power: 1.17 W (1,170 mW)
Power Consumption: 48 W ±10%
Input Current: 2.4 A ±10%
Power Supply Input: AC 100–240 V, 50/60 Hz
Power Supply Output: DC 12 V

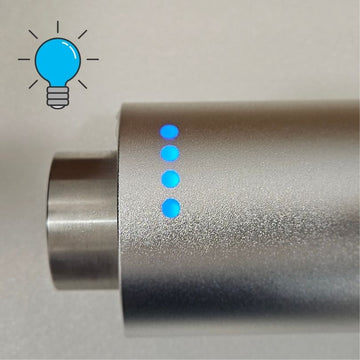

Indicator Light Status
Standby Mode:
When powered on with no water flow, the indicator light remains off.
Normal Operation:
When water flows, disinfection starts automatically and the blue indicator slowly pulses.
Abnormal Operation:
If the UV LED is not operating correctly, the blue indicator flashes rapidly.
UV LED Life Reminder:
After 8,000 operating hours, the indicator light remains red whenever the unit is powered on.
Compact & Durable Design
Ultra-compact construction allows easy integration into indoor point-of-entry water treatment systems, even where installation space is limited.
The durable 304 stainless steel body provides excellent corrosion resistance, strength and long-lasting performance.
Ideal for indoor residential, commercial and industrial water treatment applications.
50 LPM Industrial LED UVC Water Steriliser
Designed for high-flow commercial and industrial water treatment applications, this 50 LPM LED UVC Water Steriliser provides powerful, chemical-free water disinfection in a compact and durable system.
Using advanced LED UVC technology, the system provides instant disinfection when required without the warm-up time of conventional UV lamps. It is ideal for commercial buildings, factories, farms, food and beverage facilities, restaurants, schools, healthcare facilities, rainwater systems, commercial RO systems and other high-demand applications.
High-Flow Commercial & Industrial Protection
With a flow capacity of up to 50 litres per minute, this system is designed for applications requiring reliable disinfection without significantly restricting water flow.
It can be integrated into new or existing filtration and water treatment systems as a final disinfection stage, making it suitable for point-of-entry, process water, rainwater, RO and purified water applications.
Advanced LED UVC Technology
Unlike conventional UV systems, LED UVC technology provides instant ON/OFF operation with no warm-up time.
When water flows, the system automatically activates the UVC LEDs to begin disinfection. When water flow stops, the system returns to standby, reducing unnecessary power consumption and extending operating life.
The system provides up to 1.17 W (1,170 mW) of UVC LED output with a total power consumption of only 48 W.
Compact & Durable Industrial Design
Despite its high 50 LPM flow capacity, the compact inline design allows the system to be installed where space is limited.
Its robust construction makes it suitable for indoor commercial and industrial water treatment installations and easy integration with filtration, RO and other treatment equipment.
Ideal Applications
-
Commercial and industrial water treatment
-
Factories and manufacturing facilities
-
Food and beverage processing
-
Farms and agricultural applications
-
Restaurants, cafés and hospitality
-
Schools and educational facilities
-
Hospitals and clinics
-
Pharmaceutical and laboratory water systems
-
Dialysis water treatment systems
-
Commercial RO systems
-
Rainwater and tank water treatment
-
Whole-building and point-of-entry systems
-
Process and purified water systems
-
For pharmaceutical, dialysis, healthcare and other critical applications, the unit should be incorporated into an appropriately designed and validated water treatment system.
Chemical-Free Water Disinfection
UVC technology works by inactivating microorganisms without introducing disinfecting chemicals into the water.
There are no chemical residuals, and the treatment does not alter the taste or odour of the water, making LED UVC an excellent final disinfection stage for appropriately pre-treated water.
Why Choose LED UVC?
-
High flow rate up to 50 L/min
-
Advanced LED UVC technology
-
Instant ON/OFF operation
-
Automatic flow-activated disinfection
-
No warm-up time
-
Mercury-free technology
-
Chemical-free disinfection
-
Low energy consumption
-
Compact inline design
-
Suitable for commercial and industrial applications
Indicator Light Status
-
Standby Mode: When powered on with no water flow, the indicator remains off.
-
Normal Operation: When water flows, disinfection starts automatically and the blue indicator slowly pulses.
-
Abnormal Operation: If the UVC LED is not operating correctly, the blue indicator flashes rapidly.
-
UVC LED Life Reminder: After 8,000 operating hours, the indicator remains red whenever the unit is powered on.
Specifications
Flow Rate: Up to 50 L/min
UVC LED Output Power: 1.17 W (1,170 mW)
Power Consumption: 48 W ±10%
Input Current: 2.4 A ±10%
Power Supply Input: AC 100–240 V, 50/60 Hz
Power Supply Output: DC 12 V
UVC LED Operating Life: Up to 8,000 hours
Operation: Automatic flow activated
Application: Indoor use
FAQ
Does it reduce water flow?
The system is designed for flow rates up to 50 L/min when installed under the specified operating conditions. Actual flow will depend on system pressure, plumbing and other treatment equipment.
How long do the UVC LEDs last?
The UVC LEDs have an operating life of up to 8,000 hours. Because the system operates on demand when water flows, actual service life will depend on usage.
Does it use a traditional UV lamp?
No. It uses LED UVC technology rather than a conventional mercury UV lamp.
Does it operate continuously?
The system is flow activated. The UVC LEDs automatically operate when water is flowing and return to standby when flow stops.
Does it require pre-filtration?
For effective UVC disinfection, the incoming water should be appropriately pre-treated. Sediment, turbidity and other contaminants can reduce UVC transmission and disinfection performance.
Important: This product does not hold WaterMark certification. Where WaterMark certification is required under Australian plumbing regulations, please consult a licensed plumber before installation.
