Inline Conductivity TDS Meter CCT-3300E - 2000μS
CCT-3300E, Commercial Inline Water TDS Meter / Conductivity Meter & Controller
Conductivity Meter / TDS Meter
Measurement range: 1.0 – 2000 μS/cm.,
Control Mode: Relay contact,
Power: DC 24V X AC 230V
Complete Set of Conductivity Meter & Conductivity Probe Sensor.

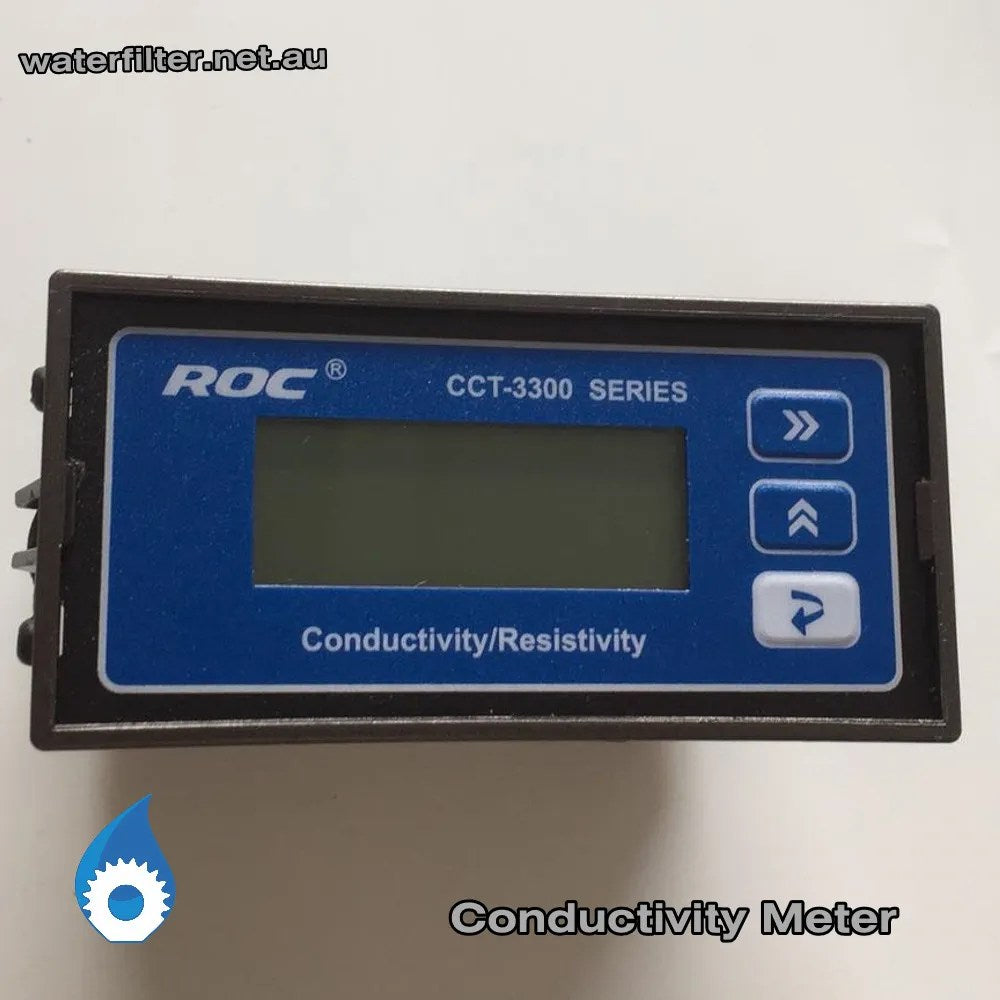

CT-3300E is a new developed conductivity / TDS integration controller.

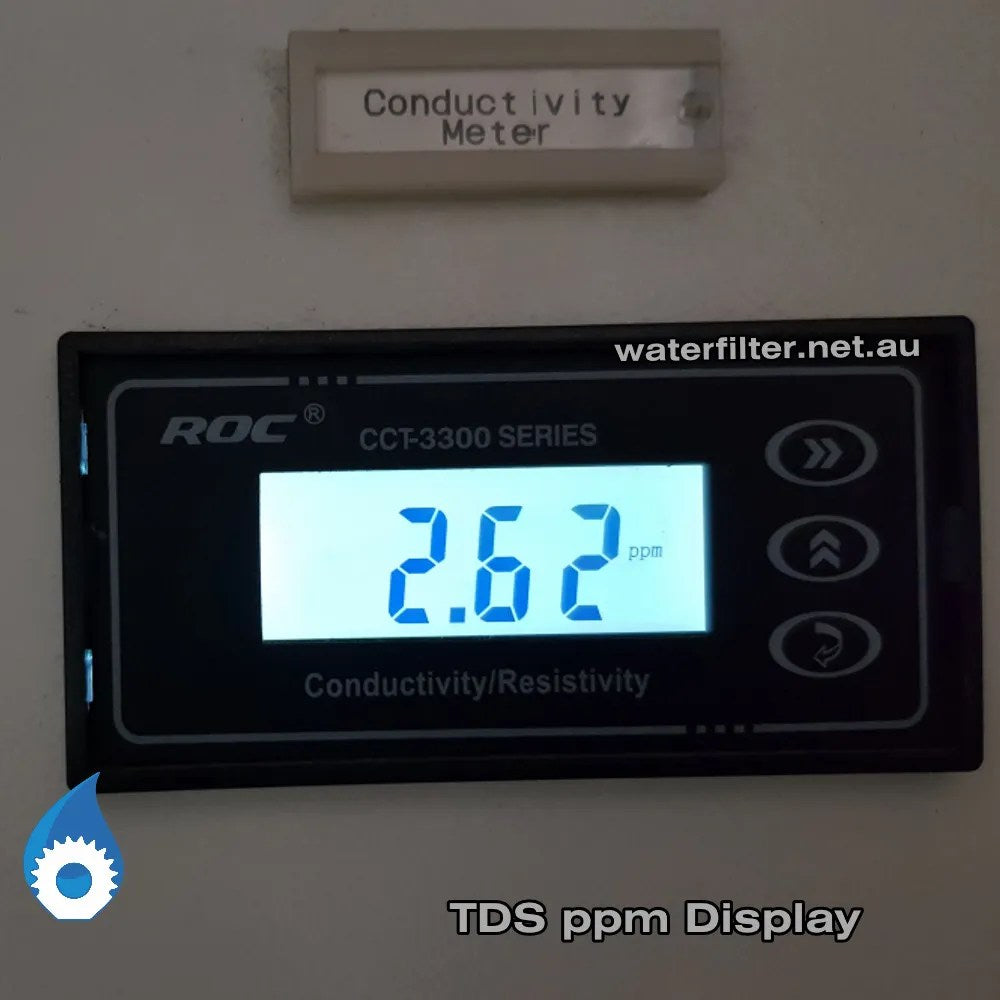

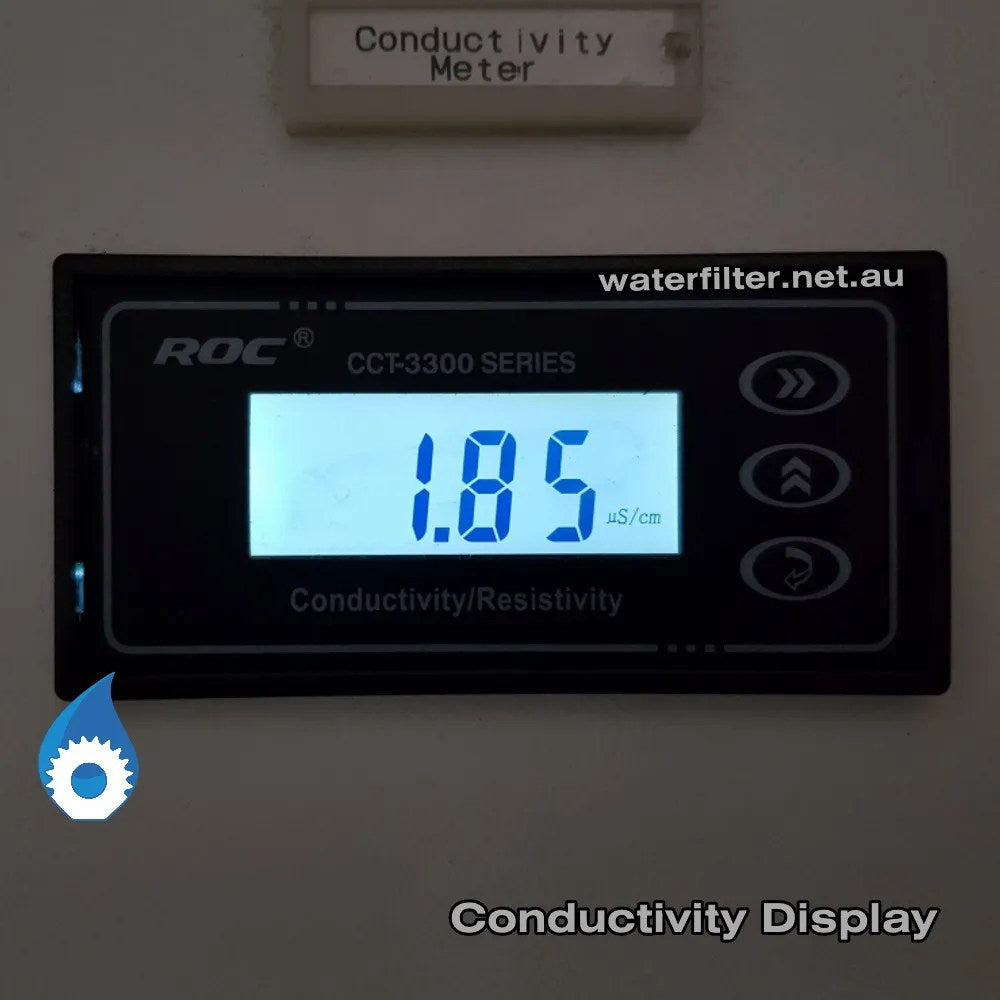

Conductivity (μS/cm) or TDS (ppm) engineering unit display can be chosen in operation.
Measurement range: 20/200/2000 μS/m, TDS: 0-1000 ppm, switched automatically.
Display: High illumination, pure white backlight LCD display
Power Supply: AC 85-260V X DC 24V (Transformer included), Safe, accurate and low maintenance.
Control Mode: Double contact relay output (ON/OFF), SPDT relay.
Transmitting output: (4~20mA).
No adjustable component inside the instrument, totally programmed automatic calibration, higher reliability.
Automatic measurement range shift, digital temperature compensation.
Automatic temperature compensation.
Resolution: conductivity 0.01μS/cm, TDS 0.01 ppm, temperature 0.1.
Working temperature: 0-50 C.
Inline TDS Meter Applications:
Pure / ultrapure water measurement control, widely used for electronic, electric, pharmacy, fine chemistry, clinical medicine, life science. CCT3200 E is widely used for monitoring of all water treatment process, Reverse Osmosis, Demi water, recirculating cooling water, Wastewater... ect.
CCT-3200 Installation:
Panel mounted installation with fast-installation clamp.
Dimension 48mm×96mm×80mm(H×W×D)
Slot dimension 44mm×92mm(H×W)
Weight 0.27kg
Conductivity probe installation: NPT 1/2" Thread.

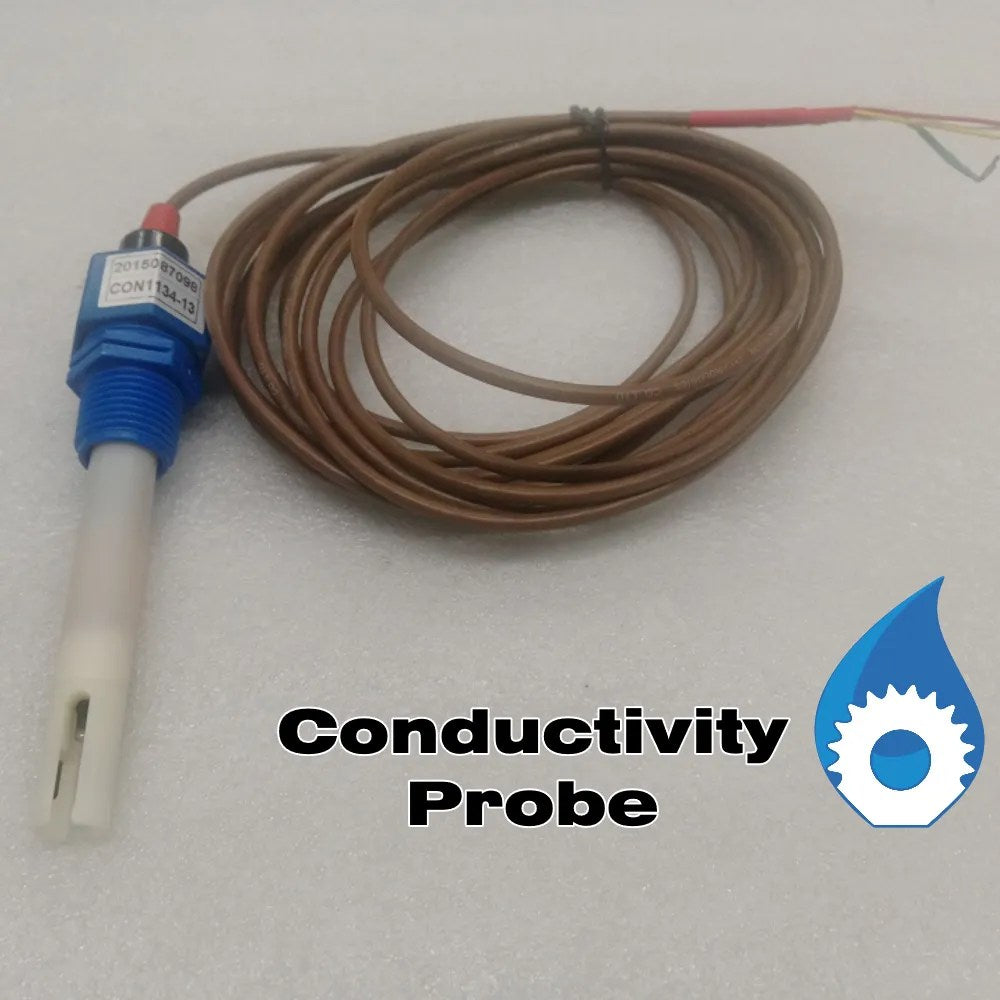

Conductivity Probe (included):
Material: SUS, graphite and plastic.
Conductivity Probe / Conductivity Sensor / Conductivity Electrode.
Model: CON3134-14 / 5m cable, Cell constant: 1.000cm-1 (1.0 - 2000 μS/cm).
Installation: NPT 1/2" Thread.
Other Probes are available, check with us.
-
Estimated Delivery:Jul 23 - Jul 27
-
Next Day Dispatch
Inline Conductivity TDS Meter CCT-3300E - 2000μS
CCT-3300E, Commercial Inline Water TDS Meter / Conductivity Meter & Controller
Conductivity Meter / TDS Meter
Measurement range: 1.0 – 2000 μS/cm.,
Control Mode: Relay contact,
Power: DC 24V X AC 230V
Complete Set of Conductivity Meter & Conductivity Probe Sensor.
CT-3300E is a new developed conductivity / TDS integration controller.
Conductivity (μS/cm) or TDS (ppm) engineering unit display can be chosen in operation.
Measurement range: 20/200/2000 μS/m, TDS: 0-1000 ppm, switched automatically.
Display: High illumination, pure white backlight LCD display
Power Supply: AC 85-260V X DC 24V (Transformer included), Safe, accurate and low maintenance.
Control Mode: Double contact relay output (ON/OFF), SPDT relay.
Transmitting output: (4~20mA).
No adjustable component inside the instrument, totally programmed automatic calibration, higher reliability.
Automatic measurement range shift, digital temperature compensation.
Automatic temperature compensation.
Resolution: conductivity 0.01μS/cm, TDS 0.01 ppm, temperature 0.1.
Working temperature: 0-50 C.
Inline TDS Meter Applications:
Pure / ultrapure water measurement control, widely used for electronic, electric, pharmacy, fine chemistry, clinical medicine, life science. CCT3200 E is widely used for monitoring of all water treatment process, Reverse Osmosis, Demi water, recirculating cooling water, Wastewater... ect.
CCT-3200 Installation:
Panel mounted installation with fast-installation clamp.
Dimension 48mm×96mm×80mm(H×W×D)
Slot dimension 44mm×92mm(H×W)
Weight 0.27kg
Conductivity probe installation: NPT 1/2" Thread.
Conductivity Probe (included):
Material: SUS, graphite and plastic.
Conductivity Probe / Conductivity Sensor / Conductivity Electrode.
Model: CON3134-14 / 5m cable, Cell constant: 1.000cm-1 (1.0 - 2000 μS/cm).
Installation: NPT 1/2" Thread.
Other Probes are available, check with us.
