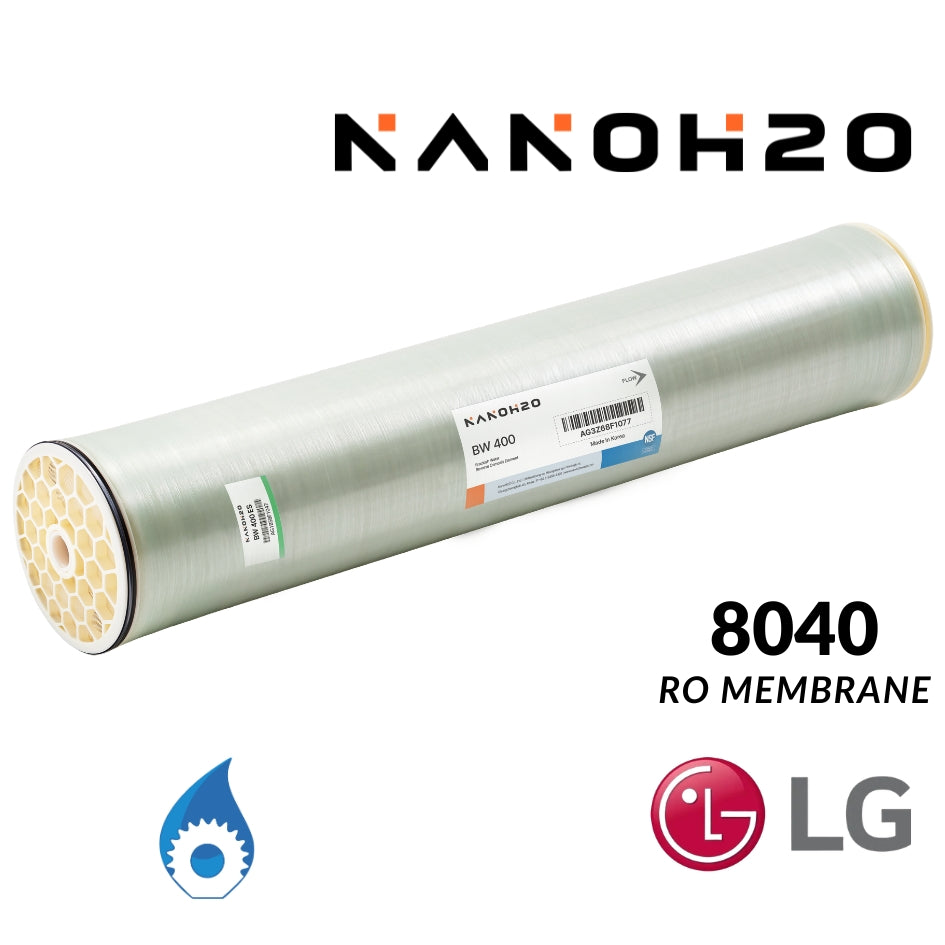

Low Pressure LG RO Membrane BW 400 ES

NanoH2O BW 400 ES, Low Pressure Reverse Osmosis Membrane

* Test Conditions : 2,000 ppm NaCl at 25°C (77°F), 150 psi (10.3 bar), pH 7, Recovery 15%.
* Each membrane element may have ±20% variation of permeate flow.
* Minimum salt rejection 99.5%
* Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).

• 8”x40” Low Pressure Brackish Water Membrane.
• High permeate flow rate and salt rejection at low feed pressures
• Suitable for low to medium salinity brackish water.

LG BW 400 ES Energy Saving Brackish Water RO membranes offer high permeability at low feed pressure significantly reducing operating costs; suitable for low to medium salinity brackish water applications.

It operates at Low Pressure (10.3 bar / 150 PSI) inlet feed water pressure.

LG BW 400 ES Enery Saving BWRO membranes offer a combination of high rejection, high flow, low pressure feed water, reliability and durability,

LG Chem’s NanoH2O™ brackish water RO membranes serve various municipal and industrial applications and major utilities around the world. LG BWRO membranes, all incorporated with innovative Thin Film Nanocomposite (TFN) technology, are offered in industry standard configurations and can easily fit into existing and new RO plants.

All LG BWRO membranes provide superior performance along with intrinsic anti-fouling property and are suitable for applications where consistent and reliable performance is a must.

Product Specifications:

Stabilized Salt Rejection: 99.5%*
Minimum Salt Rejection: 99.2%
Permeate Flow: 2500 gpd (9.5 m³/day)*
Membrane Area: 85 ft².
Diameter / Length: 4 inch / 40 inch.
*Test conditions: 2000 mg/l NaCl, 10.3 bar (150 psi), 25 °C (77 °F), pH 7, recovery rate 15%.
*Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).

Compatible with reverse osmosis membrane types:*

* Check the data sheet for each membrane.
* Before replacement, verify operating pressure, permeate flow, salt rejection, feed spacer, element dimensions and interconnector compatibility

Operation Conditions:

Max. working pressure:  600 psi (4.14MPa)
Max. Feed water flow:  16 gpm (3.6 m3/h)
Max. Temperature of Feed water:  45℃
Max. Feed water SDI (15 mins):  5.
Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
pH Range of Feed water during Continuous Operation:  2～11
pH Range of Feed Water during Chemical Cleaning:  2～12
Residual chlorine Concentration of feed water ＜0.1ppm Max.
Pressure drop of single membrane element:  15psi (0.1MPa)

Commercial Application:

- Drinking water.
- Softened water for homes, hotels, commercial laundries and car wash.
- Spot free rinse for window cleaning and solar panel cleaning
- Pure water for pharmaceuticals, laboratories, Hemodialysis and electronics
- Sterilisers and autoclaves.
- Chemical industry.
- Aquarium water treatment.
- Boiler and cooling towers make-up water.
- Pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production.

Manufactured by: NanoH2O (LG Chem) Korea.

Download LG BW 400 ES Technical Data Sheet
