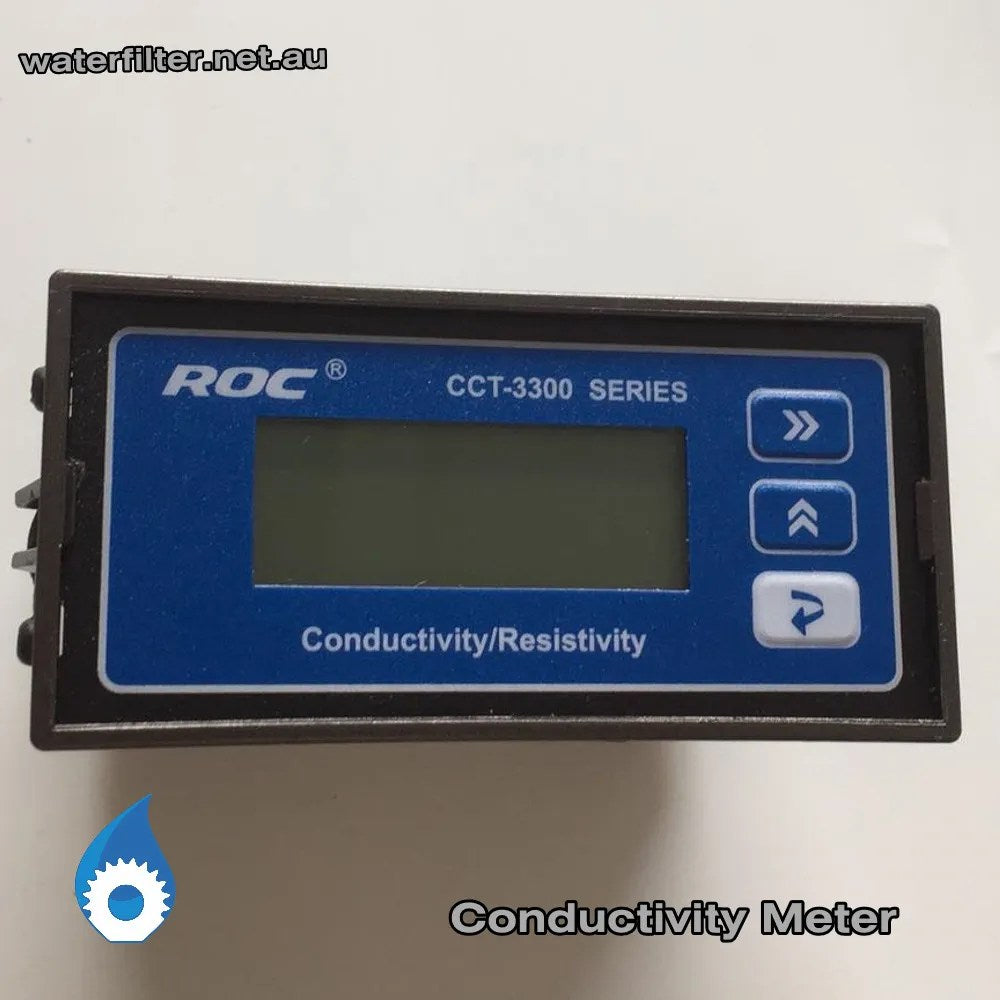

Water Resistivity Meter CCT-3300E-Res
Industrial Inline Water Resistivity Meter / Conductivity Meter & Controller
Measurement range: 0.05-18.25MΩ., 0.05-20 μS/cm.,
Control Mode: Relay contact,
Power: DC 24V X AC 230V
Monitoring of all Ultra Pure Water, DI Water, Demi Water Process
- Measurement range: 0.05-18.25MΩ., 0.05-20 μS/cm, Probe's constant: 0.010 C (CON3131-13)
- Complete Set of Resistivty Meter & Probe Sensor (CON3131-13).
- Meter Resolution: 0.01MΩ.
- Display: High illumination, pure white backlight LCD display.

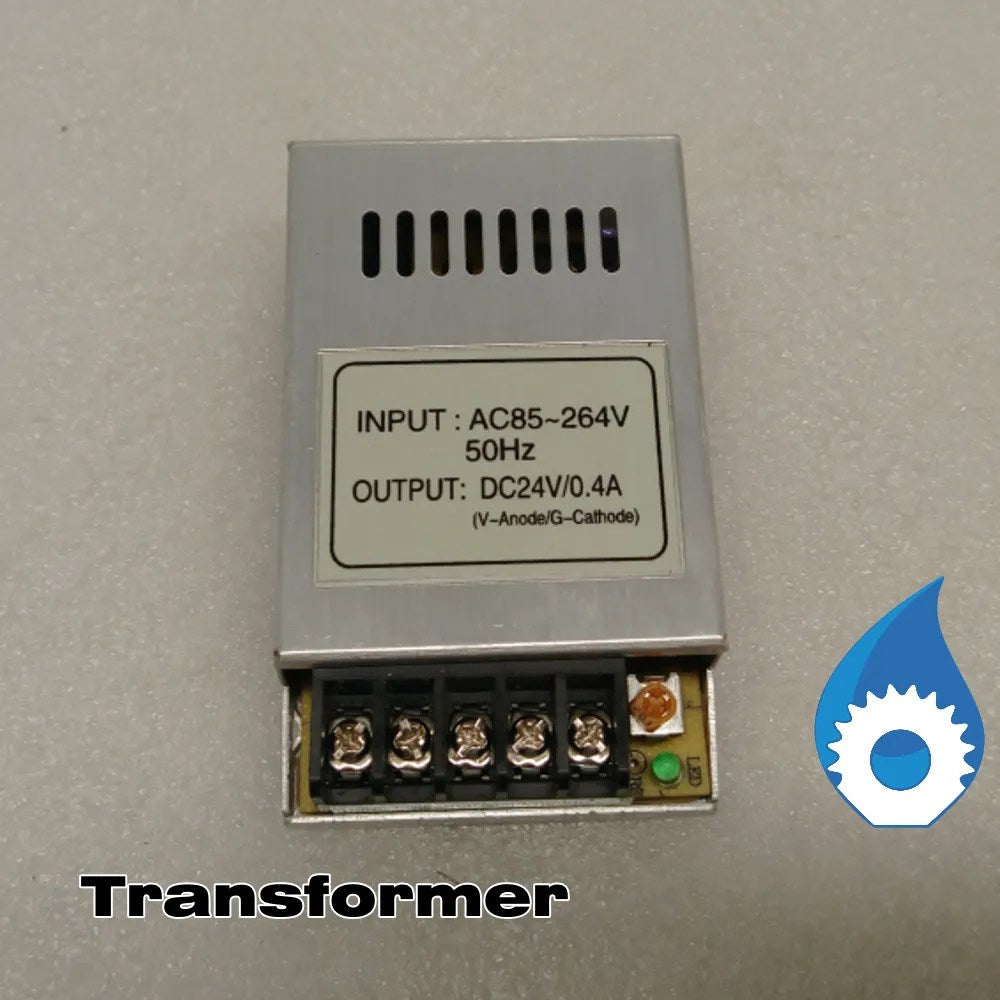

- Power Supply: AC 85-260V X DC 24V (Transformer included), Safe, accurate and low maintenance.
- Control Mode: Double contact relay output (ON/OFF), SPDT relay.
- Transmitting output: (4~20mA).

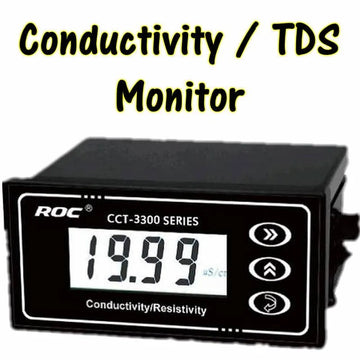

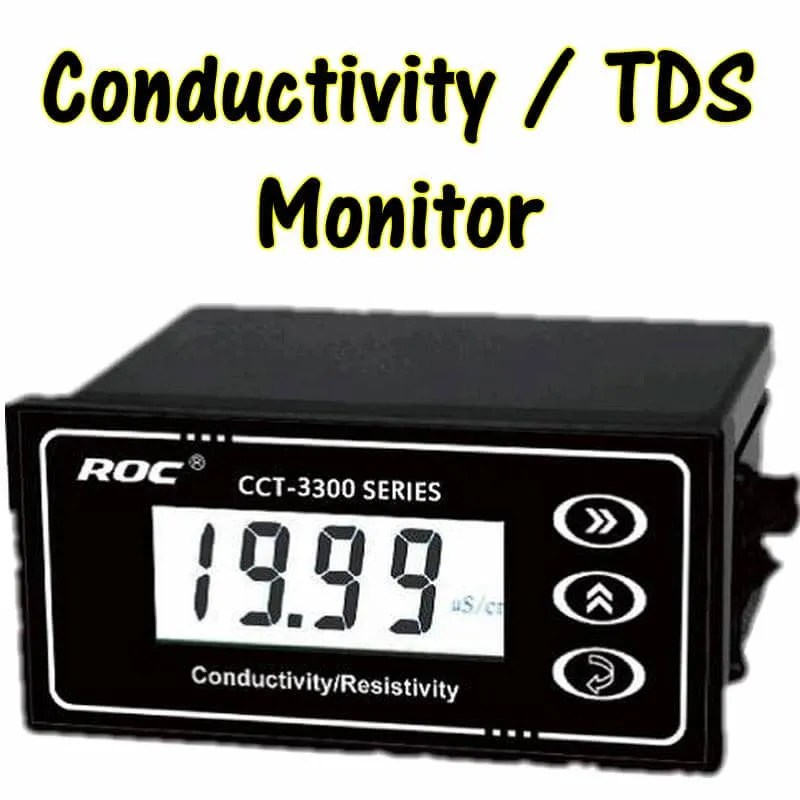

- CCT-3300E is a new developed conductivity / TDS integration controller.
- No adjustable component inside the instrument, totally programmed automatic calibration, higher reliability.
- Working temperature: 0-50 C.
Applications:
- CCT3300E is widely used for monitoring of all ultra-pure water process, Deionised DI water applications, Reverse Osmosis units, Demineralized water plants ... ect.
- Pure / ultrapure water measurement control, widely used for electronic, electric, pharmaceutical, fine chemistry, clinical medicine, life science, chemical industry ....
Installation:
- Installtion: Panel mount ,fast installation clamp.
- Dimensions: 48mm×96mm×80mm(H×W×D).
- Slot dimensions: 44mm×92mm(H×W).
- Weight 0.27kg.
- Conductivity probe installation: NPT 1/2" Thread.
Water Conductivity Resistivity Probe (included):
- Conductivity Probe / Conductivity Sensor / Conductivity Electrode.
- Material: Stainless steel, Graphite and plastic.
- Model: CON3131-13 / 5m cable, Cell constant: 0.010cm-1 (0.05-18.25MΩ., 0.05-20 μS/cm).
- Installation: NPT 1/2" Thread.
- Other Probes are available, check with us.
Download:
CCT-3300 Manual / CCT-3320 Manual (Contact us)
Free Delivery Australia, Fast Delivery New Zealand.
-
Estimated Delivery:Sep 02 - Sep 06
-
Next Day Dispatch
