Industrial Water Filter Cartridges

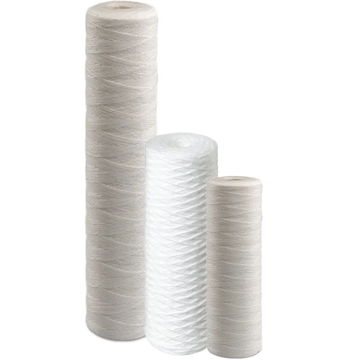

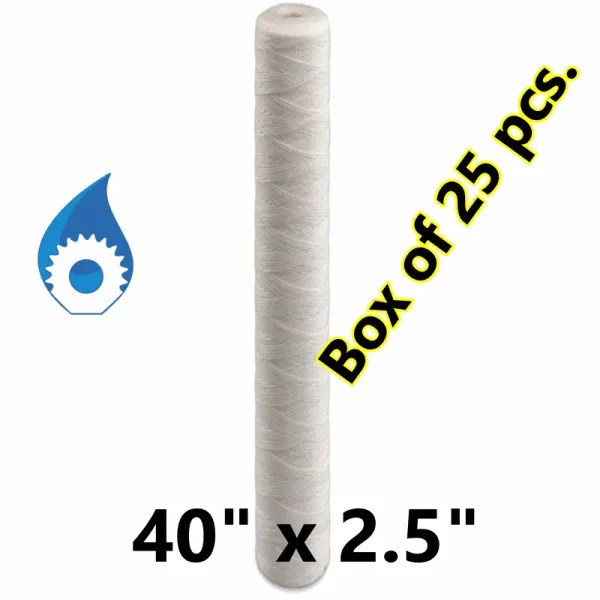

Sediment cartridges remove suspended particulate down to a specified micron rating using polypropylene fibres — string-wound or melt-blown construction. Carbon block (CTO) cartridges remove chlorine, taste, odour and adsorb organic compounds using compressed activated carbon. Granular activated carbon (GAC) cartridges deliver similar adsorption to carbon block but in a loose-fill format — better at high flow but with shorter contact time per pass. Most industrial pre-treatment runs sediment + carbon block in series.

Cartridge micron rating depends on what the cartridge is protecting. For RO pre-treatment, 5 micron sediment is the standard — fine enough to protect the membrane without clogging too quickly. For coarse particulate removal on high-sediment feed, start with 20 micron. For fine post-filtration on point-of-use, 1 micron. Carbon block cartridges are typically 5 or 10 micron and serve dual duty as fine sediment and chemical adsorption.

Industrial water filter cartridges typically need replacement every three to six months under normal commercial duty. Replacement frequency rises with high feed-water particulate or chlorine load and falls on protected feed or low-flow duty. The right replacement trigger is pressure drop across the cartridge — when ΔP rises above the system's design threshold, the cartridge is loaded and needs replacement. Calendar-based replacement is a backup, not the primary indicator.

Cartridge size compatibility is set by housing diameter and length. A 2.5" diameter housing accepts any standard 2.5" cartridge; a 4.5" Big Blue housing accepts any standard 4.5" cartridge. Cartridge length must match housing length — 10" cartridges in 10" housings, 20" cartridges in 20" housings. Diameter and length are universal standards across major brands, so cartridge swap between MDC and other manufacturers' housings of the same dimensions is direct.

Standard 2.5" and 4.5" diameter cartridges fit any standard housing of the same dimensions, regardless of housing brand. The cartridge dimensions are an industry standard — MDC Water cartridges drop into Big Blue, slimline and equivalent third-party housings without modification. The same applies in reverse — third-party cartridges of matching dimensions fit MDC Water housings.
