1,000 LPH Commercial Reverse Osmosis System
1,000 LPH, 4 x 4040 Industrial Reverse Osmosis Filtration System (<1500 mg/L TDS)
The RO4 Series Commercial Reverse Osmosis System is a compact, energy-efficient solution designed for potable, tap, and low-brackish water treatment applications.
1,000 LPH commercial RO systems produce high-quality water at a very low cost, all of which are engineered using the most advanced technology for accurate and customised solutions.
Engineered using high-quality components and advanced system design to deliver reliable performance and consistent water quality

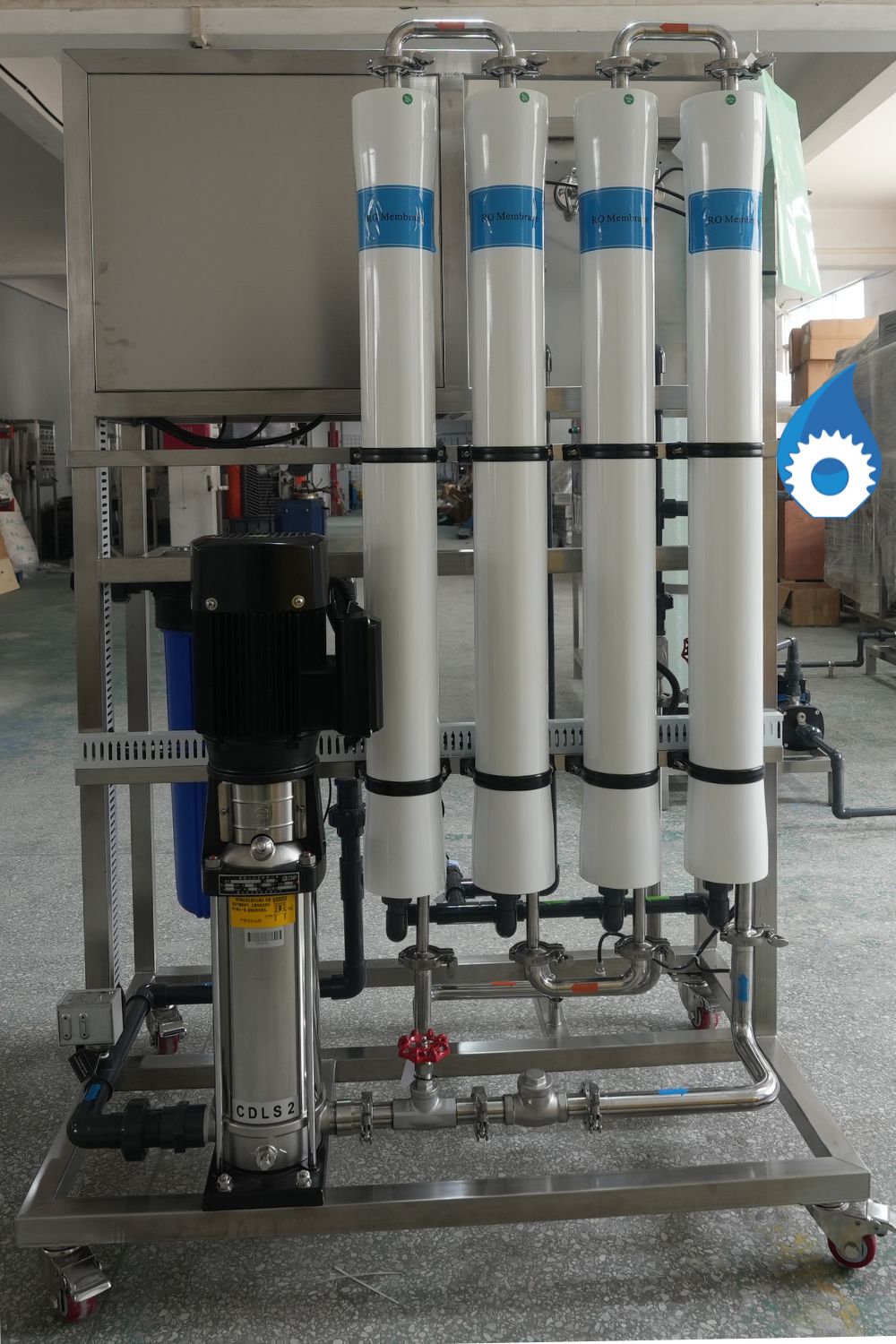

It has a SS skid frame with panel mounted components, easy system setup and relocation.
Applications:
• Commercial drinking water treatment • Food & beverage applications
• Laboratories and Hospitals. • Hospitality and restaurants
• Industrial process water • Pre-treatment for specialised water systems
• Steam boilers, heating and cooling circuits • Glazing factories, laundry and car wash etc
Specifications:
|
Model |
RO4-4 |
|
Permeate Flow Rate * |
1,000 LPH |
|
Recovery Rate * |
50-70% (adjustable) |
|
Operating Pressure * |
8 – 12 Bar (115-175psi) |
|
Inlet Water Pressure |
Min 2 Bar - Max 4 Bar (30-60psi) |
|
Feed Inlet Flow |
Min 715 LPH – Max 1,500 LPH |
|
Pre Filter |
20” x 4.5” x 5 micron Filter |
|
High Pressure Pump |
Multi-Stage Centrifugal 304 Stainless Steel, 2.2kW. |
|
Membrane Housing |
4 x 4”x40” FRP 300 psi |
|
RO Membrane |
4 x 4040 Low Pressure Membrane |
|
Connections |
Inlet 32mm (1”) PVC Permeate/Drain: 25mm (3/4”) PVC |
|
Dimension |
170 cm H x 110 cm W x 70 cm D |
* Flow, recovery and pressure depending on feed water quality and temperature.
Feed Water Operating Requirements:
TDS < 1500 mg/l (ppm) / Non Scaling Feed Water / SDI < 3 / Free Chlorine < 0.1 mg/l / Temperature 5-35° C / Inlet Pressure: 30-60 PSI (2–4 bar) @ inlet flow rate / pH 5-7.5 / Bacteria Nil / Silica Nil / Iron < 0.1 mg/l.
Pre-treatment equipment not included (Softener, anti-scalant, sand or carbon filter…etc).
Note:
Performance will vary depending on raw water quality and temperature. Appropriate pre-treatment may be necessary. Contact us for details.
Images are indicative only. Specifications subject to change without notice.

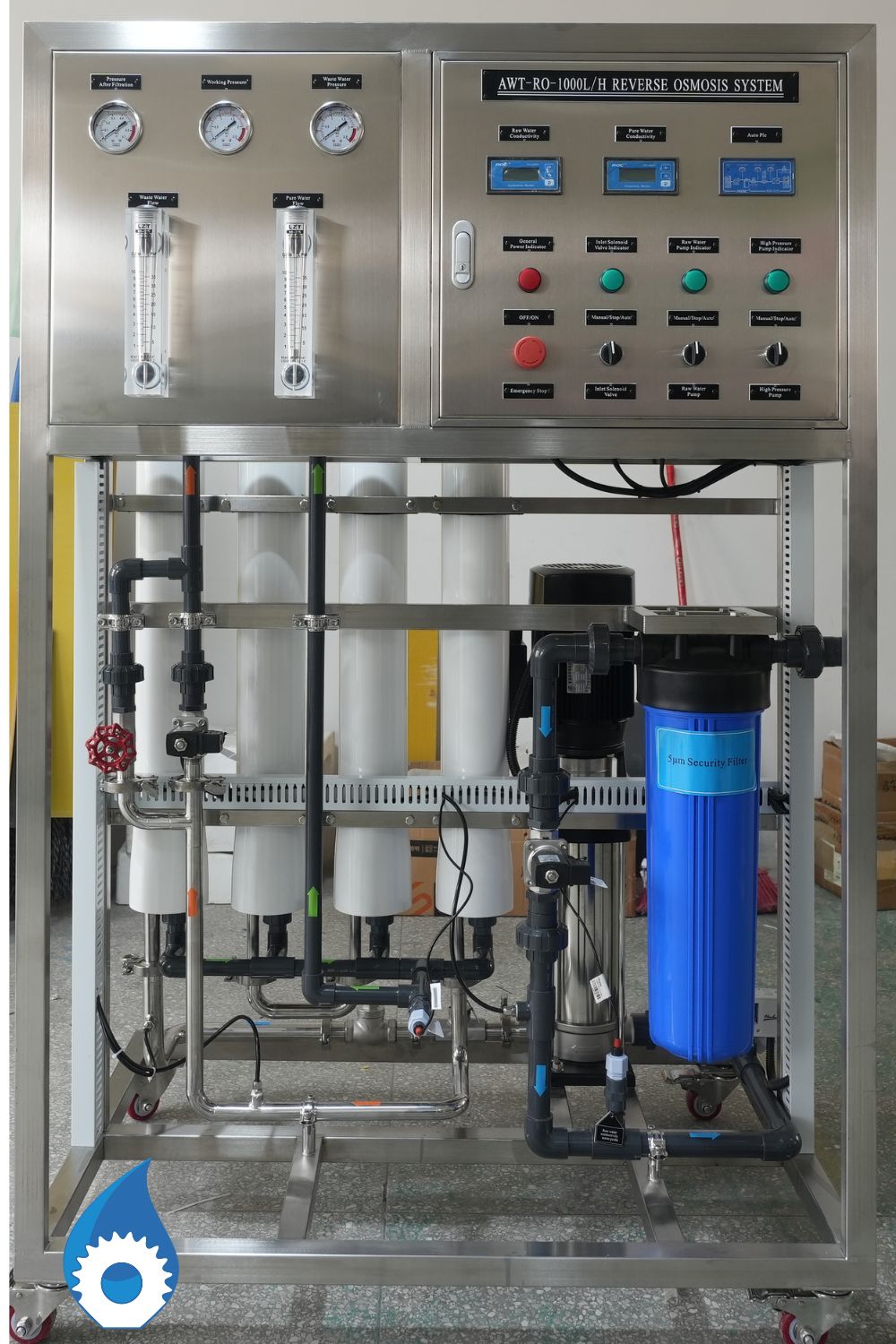

Installed Features:
|
1 x 20” Sediment Pre-Filter (5 Micron) |
Inlet Solenoid Valve |
|
Low Feed Inlet Pressure Safety Switch |
High Pressure Pump: Multi-Stage Centrifugal 304 Stainless Steel (CNP, CDL Model) |
|
Low Pressure Piping & Fittings: UPVC |
High Pressure Piping & Fittings: 304 Stainless Steel |
|
Flush (Rinse) Solenoid Valve |
Inlet Inline TDS/Conductivity Monitor |
|
Permeate Inline TDS/Conductivity Monitor |
2 x Product & Concentrate Flow Meter |
|
3 x Pressure Gauge |
Emergency Stop Switch (Power On/Off Switch) |
|
SS 304 High Pressure Pump Discharge Valve, Check Valve & Concentrate Valve |
Frame: 304 Stainless Steel, with 2/4 Wheels |
Electrical Panel:
Type: Stainless Steel Cabinet - Indoor Use.
Parts: Main parts (Circuit breaker, Relays) by Schneider.
ROC Microprocessor Controller:
- Automatic control of feed pump, inlet solenoid valve, high-pressure pump, and product water
tank level
- Low-pressure and high-pressure protection functions.
- Membrane automatic flushing function.
- Indicators.
Manual – Stop – Auto Selector Switch for: Inlet solenoid valve – Raw water feed pump – High pressure pump.
Pilot light panel indicator for: Raw Water Tank full, Inlet solenoid valve, Low pressure switch, RO Pump, Pure water tank Full, flush Process.
Emergency Stop Switch (Power On/Off Switch).
Inlet Inline TDS/Conductivity Monitor.
Permeate Inline TDS/Conductivity Monitor.
