500 LPH Commercial Reverse Osmosis System

Name: 500 LPH Commercial Reverse Osmosis System
Brand: MDC Water
Price: 12500.0 AUD
Availability: InStock

$12,500.00

$12,500.00 ~~$400.00~~

Save 0%

Tax included.

500 LPH, 2 x 4040 Industrial Reverse Osmosis Filtration System (<1500 mg/L TDS)

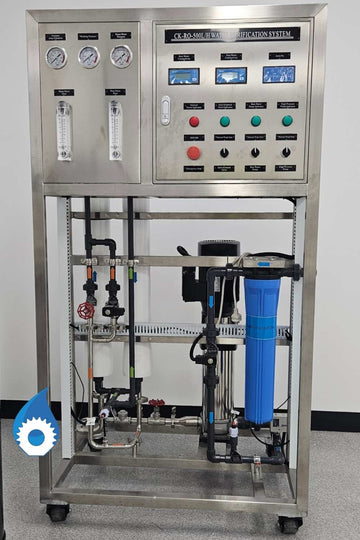

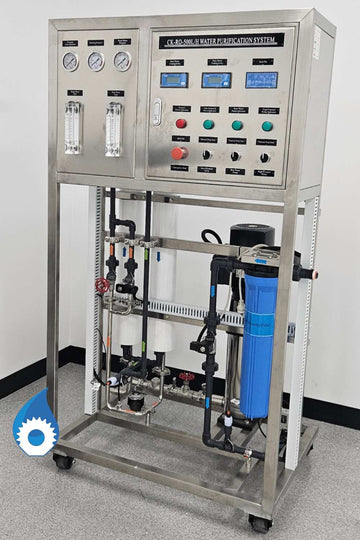

The RO4 Series Commercial Reverse Osmosis System is a compact, energy-efficient solution designed for potable, tap, and low-brackish water treatment applications.

Ranging from 250 to 1,000 LPH. These commercial RO systems produce high-quality water at a very low cost, all of which are engineered using the most advanced technology for accurate and customised solutions.

Engineered using high-quality components and advanced system design to deliver reliable performance and consistent water quality

It has a SS skid frame with panel mounted components, easy system setup and relocation.

Applications:

• Commercial drinking water treatment • Food & beverage applications

• Laboratories and Hospitals. • Hospitality and restaurants

• Industrial process water • Pre-treatment for specialised water systems

• Steam boilers, heating and cooling circuits • Glazing factories, laundry and car wash etc

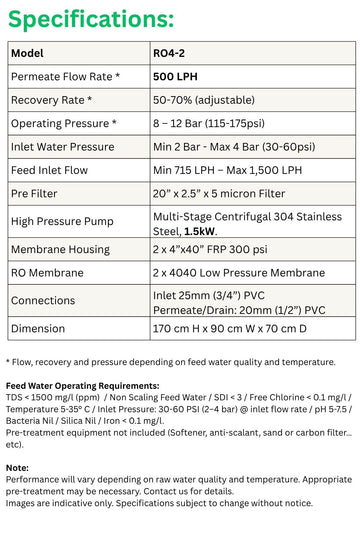

Specifications:

Model	RO4-2
Permeate Flow Rate *	500 LPH
Recovery Rate *	50-70% (adjustable)
Operating Pressure *	8 – 12 Bar (115-175psi)
Inlet Water Pressure	Min 2 Bar - Max 4 Bar (30-60psi)
Feed Inlet Flow	Min 715 LPH – Max 1,500 LPH
Pre Filter	20” x 2.5” x 5 micron Filter

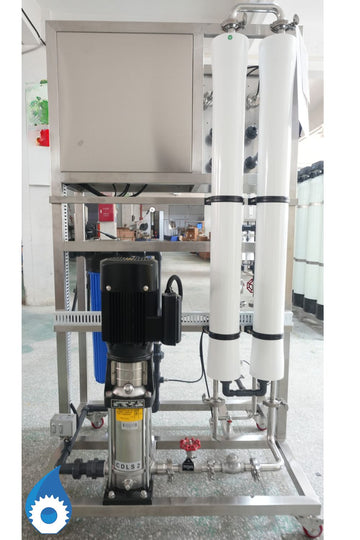

High Pressure Pump	Multi-Stage Centrifugal 304 Stainless Steel, 1.5kW.
Membrane Housing	2 x 4”x40” FRP 300 psi
RO Membrane	2 x 4040 Low Pressure Membrane
Connections	Inlet 25mm (3/4”) PVC Permeate/Drain: 20mm (1/2”) PVC
Dimension	170 cm H x 90 cm W x 70 cm D

* Flow, recovery and pressure depending on feed water quality and temperature.

Feed Water Operating Requirements:
TDS < 1500 mg/l (ppm) / Non Scaling Feed Water / SDI < 3 / Free Chlorine < 0.1 mg/l / Temperature 5-35° C / Inlet Pressure: 30-60 PSI (2–4 bar) @ inlet flow rate / pH 5-7.5 / Bacteria Nil / Silica Nil / Iron < 0.1 mg/l.
Pre-treatment equipment not included (Softener, anti-scalant, sand or carbon filter…etc).

Note:
Performance will vary depending on raw water quality and temperature. Appropriate pre-treatment may be necessary. Contact us for details.
Images are indicative only. Specifications subject to change without notice.

Installed Features:

1 x 20” Sediment Pre-Filter (5 Micron)	Inlet Solenoid Valve
Low Feed Inlet Pressure Safety Switch	High Pressure Pump: Multi-Stage Centrifugal 304 Stainless Steel (CNP, CDL Model)
Low Pressure Piping & Fittings: UPVC	High Pressure Piping & Fittings: 304 Stainless Steel
Flush (Rinse) Solenoid Valve	Inlet Inline TDS/Conductivity Monitor
Permeate Inline TDS/Conductivity Monitor	2 x Product & Concentrate Flow Meter
3 x Pressure Gauge	Emergency Stop Switch (Power On/Off Switch)
SS 304 High Pressure Pump Discharge Valve, Check Valve & Concentrate Valve	Frame: 304 Stainless Steel, with 2/4 Wheels

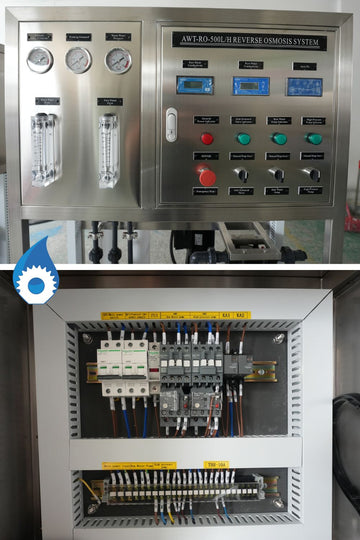

Electrical Panel:

Type: Stainless Steel Cabinet - Indoor Use.

Parts: Main parts (Circuit breaker, Relays) by Schneider.

ROC Microprocessor Controller:
- Automatic control of feed pump, inlet solenoid valve, high-pressure pump, and product water
tank level
- Low-pressure and high-pressure protection functions.
- Membrane automatic flushing function.
- Indicators.

Manual – Stop – Auto Selector Switch for: Inlet solenoid valve – Raw water feed pump – High pressure pump.

Pilot light panel indicator for: Raw Water Tank full, Inlet solenoid valve, Low pressure switch, RO Pump, Pure water tank Full, flush Process.

Emergency Stop Switch (Power On/Off Switch).

Inlet Inline TDS/Conductivity Monitor.

Permeate Inline TDS/Conductivity Monitor.
