Commercial Water Softener, 100L Resin

• Fully Automatic Volumetric Water Softener, 100L Resin, 35-45 LPM.
• In Stock / Get a Quote.

Commercial water softener reduces the negative impacts of hard water, it treats the water by removing hardness using ion exchange resin. Softening resin exchanges the hardness ions (calcium & magnesium) for sodium ions, which is regenerated periodically.

Incorporating advanced volumetric controls for optimum salt usage and system monitoring, Less salt and water are used as the metered, automatic unit only regenerates when necessary.

Technical Specifications:

- Service Flow Rate: 35 LPM (2,100 LPH) @ 200ppm Hardness.
- Maximum Flow Rate (peak): 45 LPM (2,700 LPH) @ 200PPM Hardness.
- Water Treated: 29,000L @ 200ppm Hardness (before regeneration is required).
- Salt Usage approx: 16 kg per regeneration.
- Working Inlet Water Pressure: 30 to 90 PSI (2-6 bar). {Ideal presuure: 45PSI / 3 bar}.
- Inlet/Outlet/: 1" BSP male.
- Volumatric: Full automated and metered (only regenerates when required).
- *Inlet Water Quality: Salinity (TDS) < 3,000ppm, Hardness < 800ppm, Iron < 0.8ppm, Free chlorine < 0.4ppm, Water Turbidity < 5 NTU.
- Power Supply (Transformer): AC100～240V/50～60Hz / DC12V,1.5A, Australian plug.
- Easy to install and operate, fully automatic operation, just add salt, low maintenance water softener, low running costs..

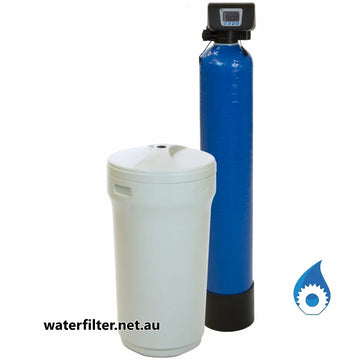

Water Softener System Includes:

1 - FRP Pressure Vessel Tank: Size 14″x65″, 100% corrosion resistant and made from high performance composite material food grade HDPE seamless liner with FRP filament winding. More info Click Here.
2 - Softening Resin: 100L of Lewatit® S1567 premium food grade softening resin, or premium softening ion exchange resin Lewatit® C 249 NS
3 - Automatic Valve Head: Advanced, volumetric, Full automated and metered (only regenerates when required).
Easy to operate electronics require little programming – simply adjust the water hardness level if needed, Used for residential and industrial water softeners.
4 - Brine Tank: 200L, comes with brine float valve, grid plate, brine well and cap.
5 - Fittings: Riser pipe, bottom and top strainer baskets, pvc tube (for attaching brine tank).

Applications:

Commercial Water Softening system can be used in a range of applications such as potable water, boiler makeup water, cooling tower feed water, car wash, Reverse Osmosis pre-treatment, pre-treatment to CSSD reverse osmosis systems, heath and hospital, factories, mining, farms, agriculture, rain water treatment, commercial and domestic appliance feed water (washing machines, dishwashers, showers ..etc)..

How Do Commercial Softeners Work?

1. Raw water runs through a bed of sodium charged ion exchange resin
2. The hardness ions (calcium & magnesium) are exchanged with sodium ions
3. Eventually the resin contains only hardness minerals and has to be regenerated
4. The control valve monitors water usage and regenerates only when necessary
5. The resin is backwashed to rinse away impurities
6. Brine solution is then drawn through the bed and hardness ions exchange for the sodium ions
7. Hardness ions are then rinsed to the drain
8. The softener is now ready to soften again.

Contact us for pricing and availability. info@waterfilter.net.au

*Pre Treatment:

Pre-treatment filtration MUST be installed if the inlet water quality values exceed their limit.
Such as: Sand filter, Sediment cartridge filter, Carbon filter, Iron filter ...etc.
