Manual Water Softener, 25L Resin

Manual Water Softener, Small Residential Water Softener Filter, 25L Resin, 12-15 LPM

• Low Cost Small Water Softener, 25L Resin, 12-15 LPM.
• In Stock / Get a Quote.

Affordable Small Economical Manual water softener reduces the negative impacts of hard water, it treats the water by removing hardness using ion exchange resin. Softener resin exchanges the hardness ions (calcium & magnesium) for sodium ions.

Our manual water softening system is a great option for residential and commercial applications, wholehouse, car wash, window cleaner, farms, small factories, light commercial and domestic appliance feed water (washing machines, dishwashers, showers ..etc).

Technical Specifications:
- Service Flow Rate: 12 LPM (720 LPH) @ 200ppm Hardness.
- Maximum Flow Rate (peak): 15 LPM (900 LPH) @ 200PPM Hardness.
- Water Treated: 7,000L @ 200ppm Hardness (before regeneration is required).
- Salt Usage approx: 5 kg per regeneration.
- Working Inlet Water Pressure: 30 to 90 PSI (2-6 bar). {Ideal presuure: 45PSI / 3 bar}.
- Inlet/Outlet/: 3/4" BSP male.
- *Inlet Water Quality: Salinity (TDS) < 2,000ppm, Hardness < 600ppm, Iron < 0.8ppm, Free chlorine < 0.4ppm, Water Turbidity < 5 NTU.
- Easy to install and operate, manual operation, low maintenance residential water softener, low running costs.

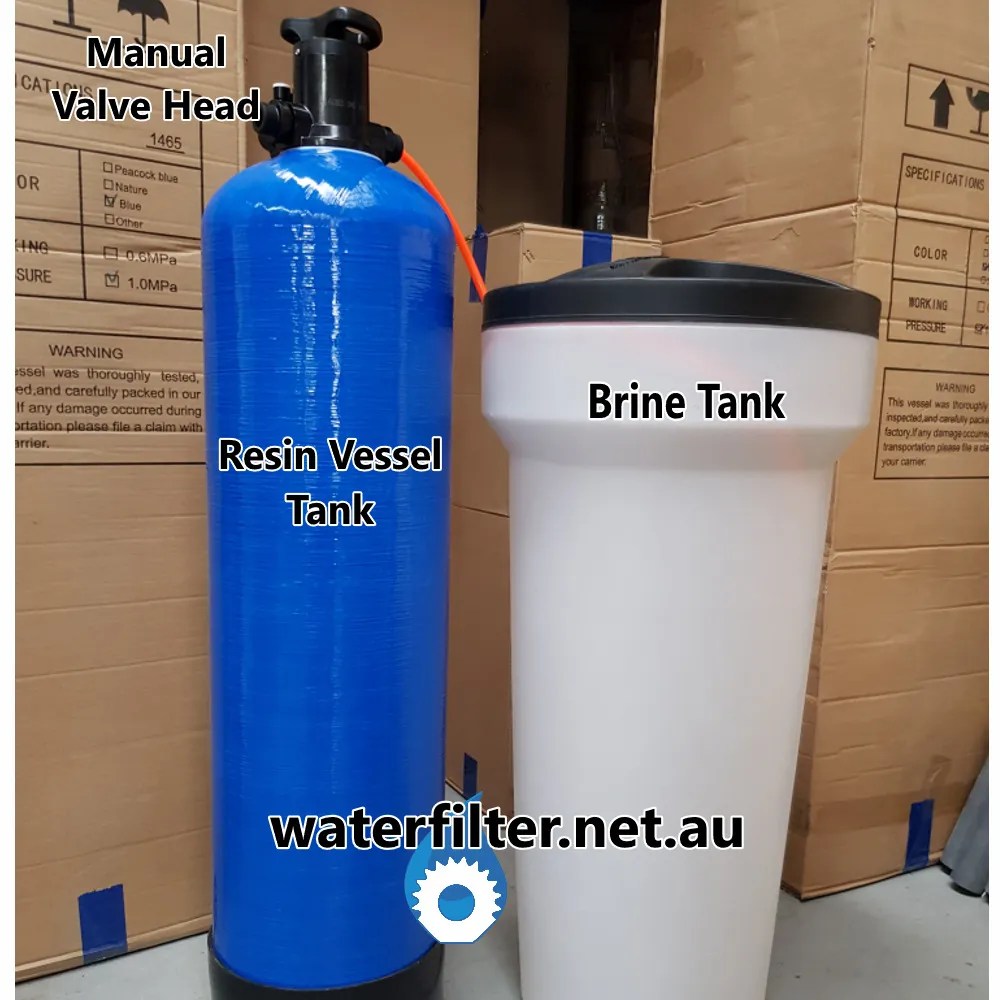

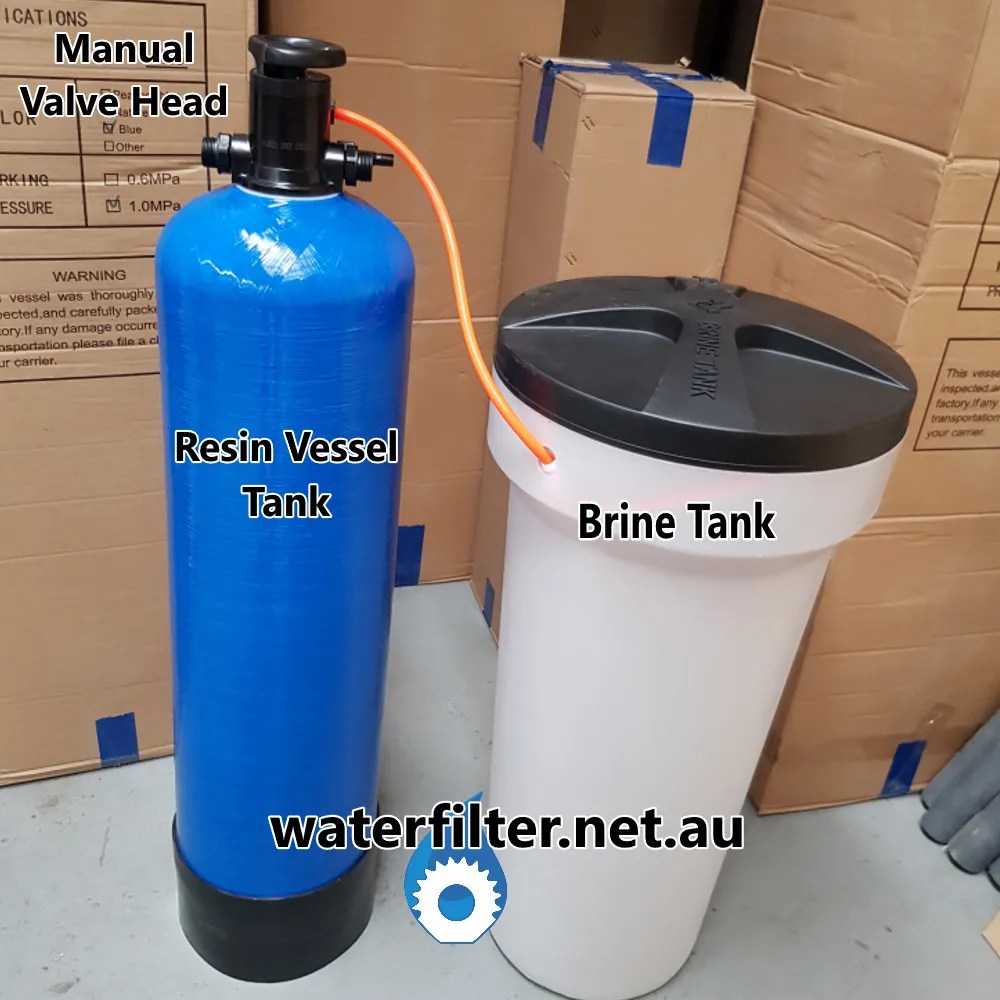

Water Softener System Includes:
1 - FRP Pressure Vessel Tank: Size 9″x35″, 100% corrosion resistant and made from high performance composite material food grade HDPE seamless liner with FRP filament winding. More info Click Here.
2 - Softening Resin: 25L of Lewatit® S1567 premium food grade softening resin, or premium softening ion exchange resin Lewatit® C 249 NS

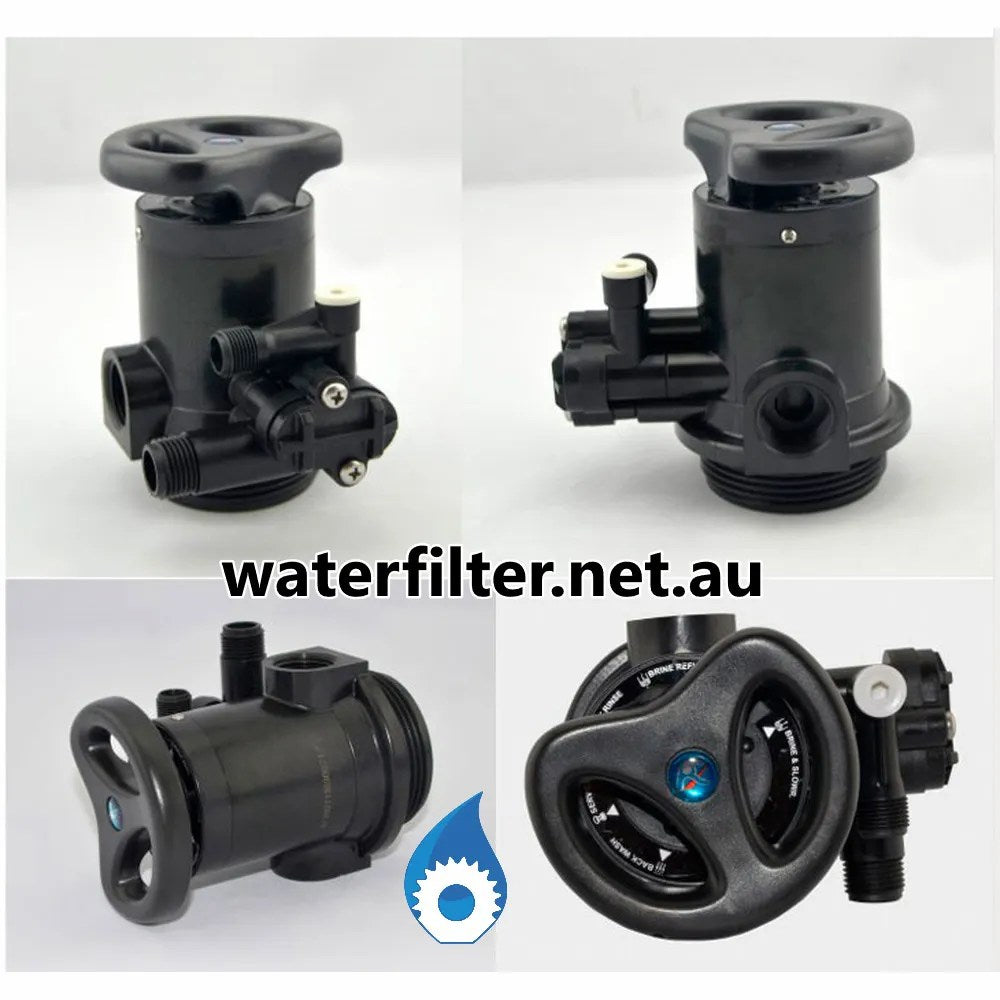

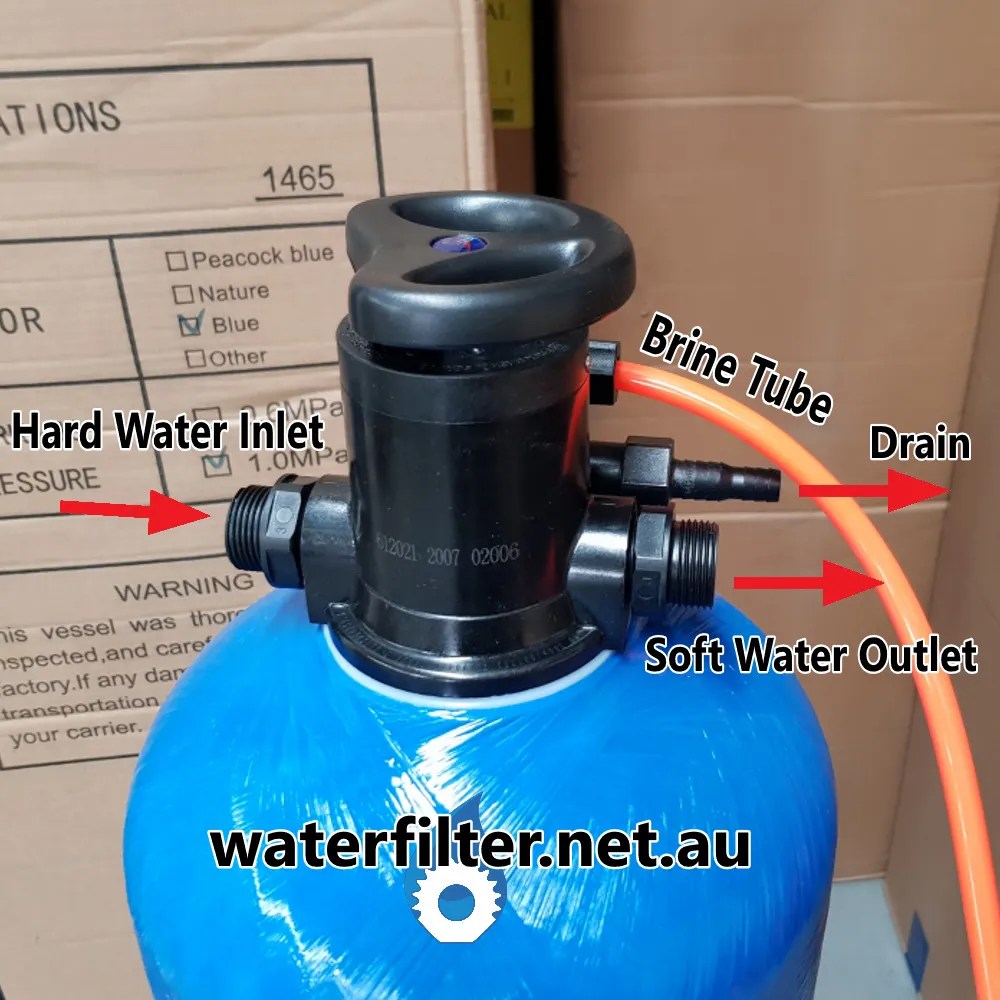

3 - Multiport Manual Valve Head: NO electricity required, 5 Cycles: service, backwash, regeneration, brine refill and fast rinse, to be done manauly like a multiport valve of swimming pool sand filter.
4 - Brine Tank: 60L, comes with brine float valve, grid plate, brine well and cap.
5 - Fittings: Riser pipe, bottom and top strainer baskets, pvc tube (for attaching brine tank).

How Do Manual Softeners Work
1. Raw water runs through a bed of sodium charged ion exchange resin
2. The hardness ions (calcium & magnesium) are exchanged with sodium ions
3. Eventually the resin contains only hardness minerals and has to be regenerated
4. The operator (You) monitor water usage, water quality and time, so you can know the softener needs to be regenerated.
5. You need to do the regenration cycles manually, you put it into the backwash cycle for 8-10 minutes, followed by a brine draw and slow rinse regenration for 40-60 minutes, then a brine tank refill for 10-15 minutes, followed by fast rinse 8-10 minutes, and then back into the service mode, the softener is now ready to soften again.
During regenration the brine solution is drawn through the bed and hardness ions exchange for the sodium ions, Hardness ions are then rinsed to the drain.

Detailed operation manual and video will be sent along with this water softener.

Contact us for pricing and availability. info@waterfilter.net.au

*Pre-Treatment:
Pre-treatment filtration MUST be installed if the inlet water quality values exceed their limit.
Such as: Sand filter, Sediment cartridge filter, Carbon filter, Iron filter ...etc.
