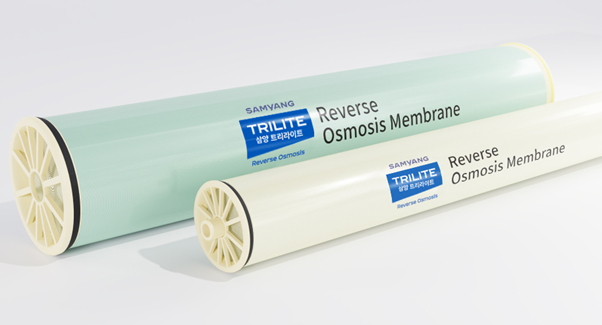

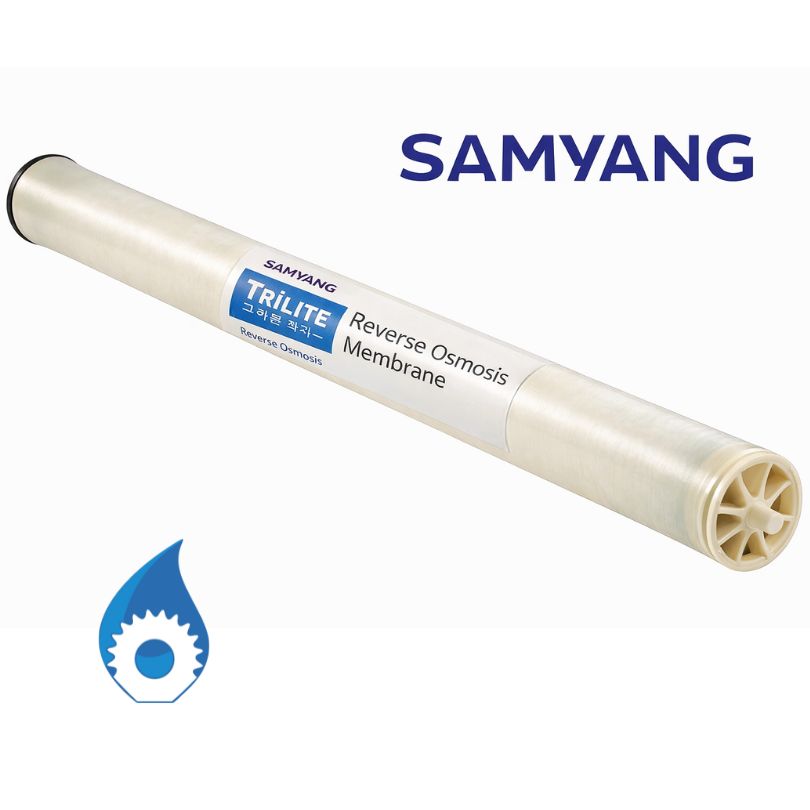

Trilite BWLE-4040 Low Pressure RO Membrane

Commercial 4 inch x 40 inch Low Pressure Reverse Osmosis Membrane

* Test conditions: 1500 mg/l NaCl, 10.3 bar (150 psi), 25 °C (77 °F), pH 6.5-7.5, recovery rate 15%.
* Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).
* Each membrane element may have ±20% variation of permeate flow rate.
* Minimum salt rejection 99.0%

Trilite BWLE-4040 commercial reverse osmosis membrane is suitable for water purification applications of water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water.

Trilite BWLE-4040 Low Energy RO membrane delivers high permeate flows and salt rejection at lower raw water pressures, compared to regular low-pressure membrane elements. The high salt rejection and low working pressure result in up to 30% lower energy consumption compared to standard elements.

Product Specifications:

Membrane Area: 100 ft² (9.3m²).
Diameter / Length: 4 inch / 40 inch.
Feed Spacer Thickness: 28 (mil)

Commercial Application:

- Drinking water.
- Softened water for homes, hotels, commercial laundries and car wash.
- Spot free rinse for window cleaning and solar panel cleaning
- Pure water for pharmaceuticals, laboratories, Hemodialysis and electronics
- Sterilisers and autoclaves.
- Chemical industry.
- Aquarium water treatment.
- Boiler and cooling towers make-up water.
- Pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production.

Operation Conditions:

Max. working pressure:  600 psi (4.14MPa)
Max. Feed water flow:  16 gpm (3.6 m3/h)
Max. Temperature of Feed water:  45℃
Max. Feed water SDI15: 5.
Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
pH Range of Feed water during Continuous Operation:  2～11
pH Range of Feed Water during Chemical Cleaning:  1～13
Residual chlorine Concentration of feed water ＜0.1ppm Max.
Pressure drop of single membrane element:  15psi (0.1MPa)

Download Trilite BWLE-4040 Data Sheet

Replaces: Vontron ULP21-4040, LG BW 4040 ES

Manufactured by: Samyang (Korea), Made in China

Compatible with reverse osmosis membrane types:

The Trilite BWLE-4040 membrane element can be used as a replacement for the following membrane elements in existing water treatment systems:

FilmTec LC LE-4040 / FilmTec BW LE-4040 / Vontron ULP21-4040 / LG BW 4040 ES / GE Desal 4040 / Hydranautics ESPA2-LD-4040 / Toray TMG10D / CSM RE4040-BLN / Axeon HF1-4040

*Please refer to the datasheet for each membrane for compatibility confirmation.
