TRILITE BWULE-4040

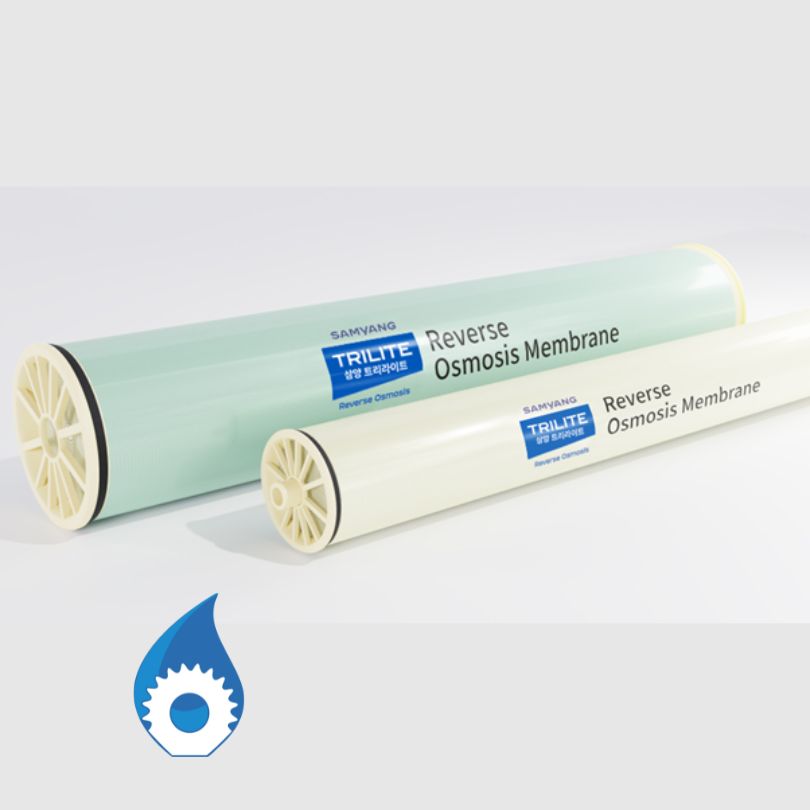

TRILITE BWULE-4040, Ultr Low Pressure Reverse Osmosis Membrane

• Low operating pressure (approximately half of standard RO membranes)
• Reduced energy consumption
• Lower initial system cost (smaller pumps, piping, valves, and related equipment)
• Suitable for feed water with TDS < 1,000 ppm
• Applications: Drinking water, low-salinity industrial water, food and pharmaceutical industries

Test Conditions:

1.  Operating Pressure 100psi (0.69Mpa / 7.03kgf/cm2)
2. Temperature 25℃ (77℉)
3. Tested at 500mg/L NaCl Solution.
4. pH 6.5~7.5 5.
5. Recovery Rate at 15%.
6. Each membrane element may have ±20% variation of permeate flow rate

* Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).

Designed for Low Salinity Inlet Water to Operate at Ultra Low Pressure (6.9 bar / 100 PSI)

Product Specifications:
Salt Rejection: 99.2%*
Permeate Flow: 2,600 gpd (9.8 m³/day)*
Membrane Area: 100 ft².
Diameter 4 inch / Length 40 inch.

TRILITE BWULE-4040 reverse osmosi membrane is suitable for water purification applications of water sources with salt concentration lower than 1000 ppm, such as surface water, underground water, tap water and municipal water.
ULE / ULP series of membrane element is particularly applicable to the second-pass desalination with two-pass RO system.

Commercial Application:
- Drinking water.
- Softened water for homes, hotels, commercial laundries and car wash.
- Spot free rinse like window cleaning and solar panel cleaning
- Pure water for pharmaceuticals, laboratories, Hemodialysis and electronics
- Sterilisers and autoclaves.
- Chemical industry.
- Aquarium water treatment.
- Boiler and cooling towers make-up water.
- Pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production..

Compatible with reverse osmosis membrane types:*
Dow Filmtec XLE-4040 , LG BW 4040 UES, Vontron XLP11-4040, Toray TMG10 , CSM RE4040-BLF , GE AK4040FM , GE AK-90.
*Check the data sheet for each membrane.

Download Trilite BWULE-4040 Data Sheet

Replaces: Vontron XLP11-4040, LG BW 4040 UES

Manufactured by: Samyang (Korea), Made in China

Operation Conditions:
Max. working pressure:  600 psi (4.14MPa)
Max. Feed water flow:  16 gpm (3.6 m3/h)
Max. Temperature of Feed water:  45℃
Max. Feed water SDI15: 5.
Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
pH Range of Feed water during Continuous Operation:  3～10
pH Range of Feed Water during Chemical Cleaning:  2～12
Residual chlorine Concentration of feed water ＜0.1ppm Max.
Pressure drop of single membrane element:  15psi (0.1MPa)
