Vontron ULP21-4040 RO Membrane
-
Estimated Delivery:Dec 08 - Dec 12
-
Next Day Dispatch

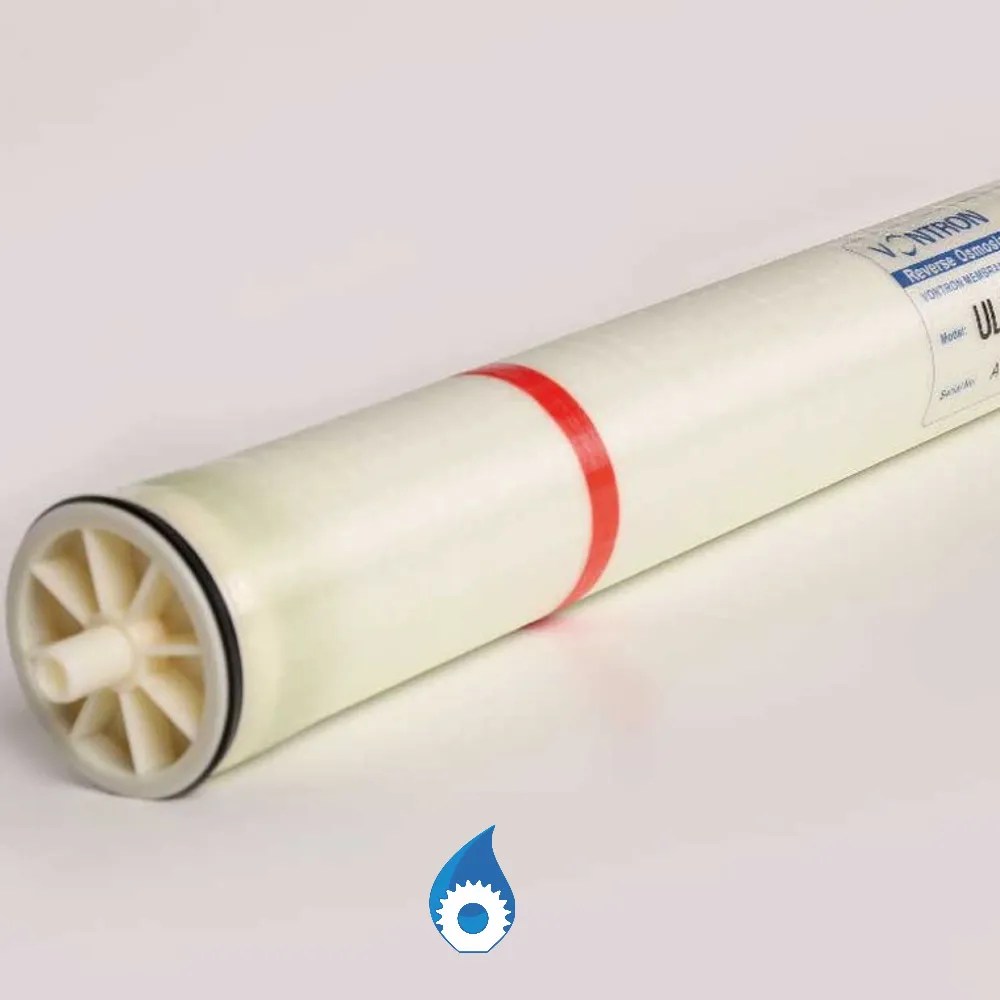

Vontron ULP21-4040 RO Membrane
Commercial 4 inch x 40 inch Low Pressure Reverse Osmosis Membrane
| Permeate Flow GPD (m3/d) | Stable Rejection Rate | Operating pressure |
| 2,600 (9.8) | 99.5 % | 150 psi (1,030 kpa) |
* Test conditions: 1500 mg/l NaCl, 10.3 bar (150 psi), 25 °C (77 °F), pH 7.5, recovery rate 8%.
* Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5 mic cartridge fitler ...etc).
* Each membrane element may have ±20% variation of permeate flow.
* Minimum salt rejection 99.0%
Vontron ULP 4040 commercial reverse osmosis membrane is suitable for water purification applications of water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water.
Vontron ULP21-4040 ultra low pressure RO membrane delivers high permeate flows and salt rejection at lower raw water pressures, compared to regular low-pressure membrane elements. The high salt rejection and low working pressure result in up to 30% lower energy consumption compared to standard elements.
Product Specifications:
Membrane Area: 100 ft² (9.3m²).

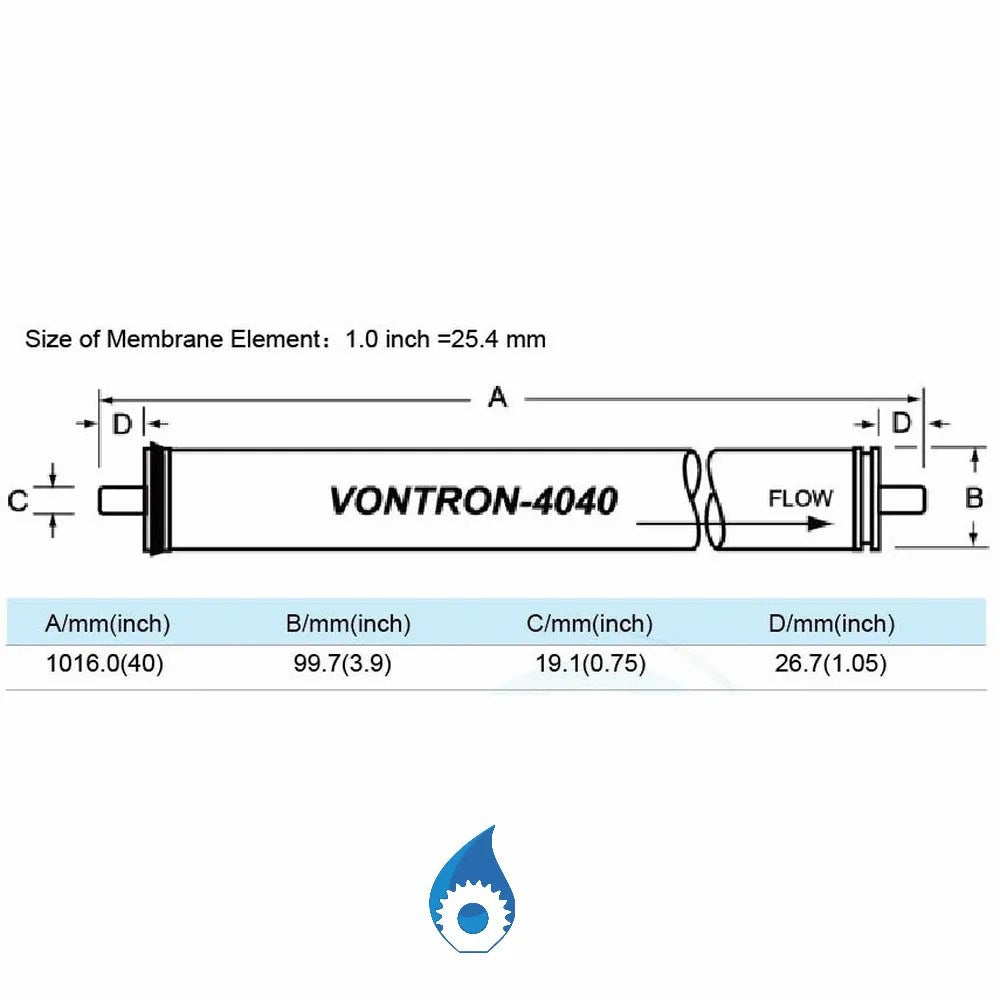

Diameter / Length: 4 inch / 40 inch.
Feed Spacer Thickness: 28 (mil)
Commercial Application:
- Drinking water.
- Softened water for homes, hotels, commercial laundries and car wash.
- Spot free rinse for window cleaning and solar panel cleaning
- Pure water for pharmaceuticals, laboratories, Hemodialysis and electronics
- Sterilisers and autoclaves.
- Chemical industry.
- Aquarium water treatment.
- Boiler and cooling towers make-up water.
- Pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production..
Compatible with reverse osmosis membrane types:*
Filmtec BW LE-4040 / Lanxess B085 LE 4040 / GE Desal AG4040 / Hydranautics ESPA2-LD-4040 / Toray / CSM RE4040-BLN / Axeon HF1 4040
*Check the data sheet for each membrane.
Operation Conditions:
Max. working pressure: 600 psi (4.14MPa)
Max. Feed water flow: 16 gpm (3.6 m3/h)
Max. Temperature of Feed water: 45℃
Max. Feed water SDI15: 5.
Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
pH Range of Feed water during Continuous Operation: 3～10
pH Range of Feed Water during Chemical Cleaning: 2～12
Residual chlorine Concentration of feed water ＜0.1ppm Max.
Pressure drop of single membrane element: 15psi (0.1MPa)
Download Vontron ULP21-4040 Data Sheet
