Media Tanks & FRP Pressure Vessels

MDC Water stocks fibreglass-reinforced plastic (FRP) pressure vessels and media tanks for commercial and industrial water treatment — softening, deionisation, multi-media filtration and specialty media duty. Standard diameters cover 8" through 30"+ in matched heights, with the full accessory range — riser tubes, distributors, baskets and tank adapters — held as Australian stock since 1998.

View Products
Contact Us

Trusted By
Filter Pressure Vessel Tank 13"x54" - Black image

Small Media Tank 8"x13" - 8"x17" - 8"x24"

Regular price From $105.00
Sale price From $105.00 Regular price
Unit price
8" Small Media Vessel, DI Tank, Small Resin Tank Used for small DI resin Tank,...
Media Pressure Vessel Tank 14"x65" - Black image

FRP Media Tank 9"x17" - FRP Tank

Regular price $115.00
Sale price $115.00 Regular price
Unit price
Small Filter Pressure Vessel 9"x17", DI Tank, DI Resin Bottle, Resin Tank, Mixbed Resin Vessel...
FRP Pressure Vessel 9"x35" - DI Resin Vessel

FRP Pressure Vessel 9"x35" - DI Resin Vessel

Regular price $130.00
Sale price $130.00 Regular price
Unit price
Filter Pressure Vessel 9"x35", DI Resin Vessel, DI Resin Bottle, Resin Tank, Mexbed Resin Vessel...
FRP Pressure Vessel Tank 10"x54"

FRP Pressure Vessel Tank 10"x54"

Regular price $160.00
Sale price $160.00 Regular price $160.00
Unit price
FRP Pressure Vessel 10"x54", Mixed Bed Resin Vessel Tank, Softener Body Used in softeners, sand...
Filter Pressure Vessel Tank 13"x54"

Filter Pressure Vessel Tank 13"x54"

Regular price $330.00
Sale price $330.00 Regular price $330.00
Unit price
FRP Pressure Vessel 13"x54", Sand Filter Vessel, Resin Tank, Softener Tank Used in softeners, sand...
Media Pressure Vessel Tank 14"x65"

Media Pressure Vessel Tank 14"x65"

Regular price $365.00
Sale price $365.00 Regular price $365.00
Unit price
Filtration Media Tank 14"x65", Iron Filter Vessel, Ion Exchange Resin Vessel Tank. Used in iron...
FRP Pressure Vessel Tank 16"x65"

FRP Pressure Vessel Tank 16"x65"

Regular price $400.00
Sale price $400.00 Regular price
Unit price
16"x65" FRP Pressure Vessel Tank, Commercial Filter Vessel, Resin Vessel Tank. For many different commercial...
Commercial FRP Filter Pressure Vessel 18"x65"

Commercial FRP Filter Pressure Vessel 18"x65"

Regular price $590.00
Sale price $590.00 Regular price $590.00
Unit price
Industrial FRP Filter Pressure Vessel Tank 18"x65", Filter Vessel Tank. For many different commercial and...

Featured Products

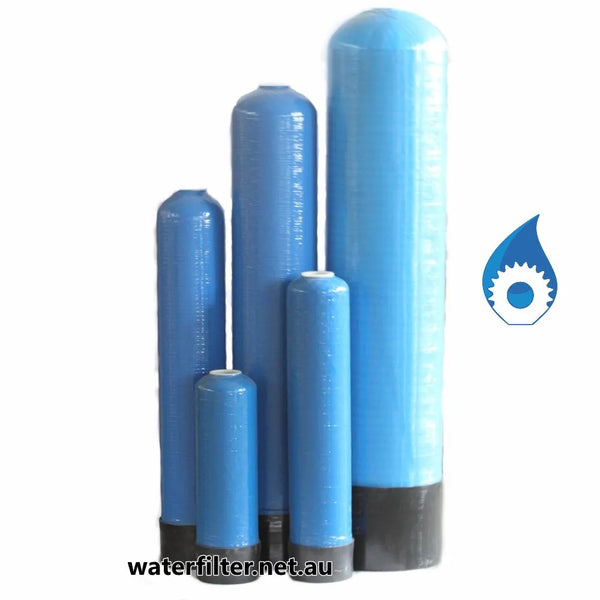

Filter Pressure Vessel Tank 13

Filter Pressure Vessel Tank 13"x54"

FRP Pressure Vessel 13"x54", Sand Filter Vessel, Resin Tank, Softener Tank

  • Used in softeners, sand & carbon filters, mixed bed resin deionisers and other media filters.
  • In Stock / Get a Quote

  • 1354 FRP Media Filter pressure vessel is used to hold filtration media for many different water treatment applications, FRP filter pressure vessel tank is used in water softeners, sand filters, multi-media filters, carbon filters, iron filters, mixed bed resin deionizers and other media filters,
  • It can be combined with any type of specialised filtration media such as activated carbon, calcite, quartz sand, birm, siliphos, zeolite, KDF as well as a number of different ion exchange resins such as softening, deionisation resin and mixbed resin.
  • The polyglass pressure tanks are made of high performance composite material (FRP - fibreglass reinforced plastic filament winding outer shell) with HDPE liner.
  • Material of Construction: FRP with polyethylene inner shell.
  • Colour: Blue or black colour.



  • Opening: Top opening with 2.5″ Threaded, 2.5"-8NPSM neck.
  • Total Capacity: 104 liter.
  • Nominal Dimension: 330x1370mm (13 inch OD x 54 inch High).
  • Maximum Operating Pressure: 150 psi (1 MPa).
  • Burst Pressure: 4 times of design pressure.
  • Maximum Operating Temperature: 49°C.
  • Fibre Reinforced Plastic (FRP) Filter Vessels are only meant to be used with water applications, and must not be used for pneumatic or hydro-pneumatic applications.
  • Different sizes of filtration media tanks are available, Click here for more details.
  • We stock a full range of components, accessories and fittings for mineral tanks such as Riser Tubes, Baskets, Strainers, Distributors, Tank Adapters, Diffusers, Hub and Lateral Assemblies, In / Out Tank Heads and many other Components. Click here for more details.
  • Wide range of automatic and manual control valve for softener and filters.
  • We deliver Australia wide.
  • Contact us for pricing and availability. info@waterfilter.net.au

$330.00

View Product

Standard Tank Sizes

MDC Water stocks FRP media tanks in standard diameters from 8" through 30" and beyond, with heights matched to media volume requirements. Smaller 8" to 12" tanks suit residential and very-light-commercial softening and filtration. Mid-range 14" to 24" tanks cover commercial softening, deionisation and multi-media filtration for hospitality, food and beverage and laundry applications. Larger 30"+ tanks serve industrial-scale duty in manufacturing, mining and process water treatment. Tank diameter sets resin or media volume capacity; tank height accommodates freeboard for backwash expansion.

Tank Components & Accessories

MDC Water stocks the full range of media tank components and accessories — riser tubes, baskets, strainers, distributors, hub and lateral assemblies, in/out tank adapters, and diffusers. The riser tube carries treated water from the bottom of the tank to the top control valve. Distributors at the riser base ensure even flow through the media bed during service and even backwash distribution during regeneration. Baskets and strainers prevent media migration into downstream piping. Hub and lateral assemblies replace simple distributors on larger tanks for more uniform flow distribution.

Applications: Softening, DI, Multi-Media

FRP media tanks serve three primary water treatment applications. Softener tanks are loaded with cation resin and connected to a brine-regeneration control valve. Deionisation tanks are loaded with mixed bed or two-bed resin and run as exhaustible or regenerable DI vessels. Multi-media filtration tanks are loaded with graded layers of anthracite, sand and garnet for particulate removal pre-treatment. The FRP vessel is identical across applications; the loaded media and the matched control valve define the system function.
