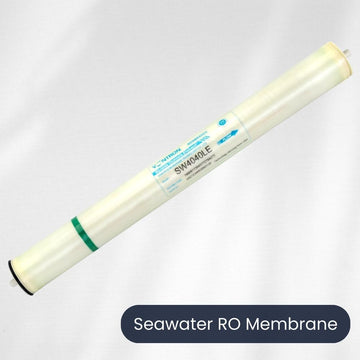

Seawater RO Membranes

A seawater reverse osmosis membrane is a high-pressure RO element engineered to handle feed water TDS at full seawater concentration — 35,000 ppm and above. Membrane active layer chemistry and substrate construction are built to maintain salt rejection performance under the high osmotic pressure that seawater feed presents. SW elements operate at substantially higher applied pressure than brackish water elements.

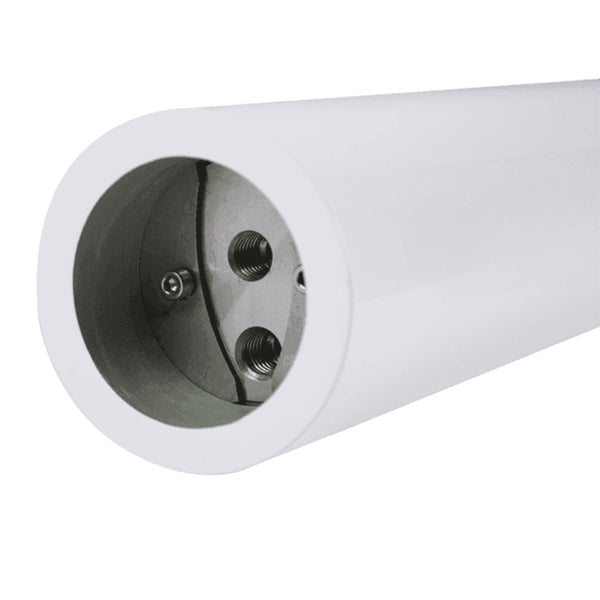

Seawater RO membranes typically operate at 5,500 to 7,000 kPa applied pressure. The exact operating pressure depends on feed salinity, temperature and target recovery rate. Cooler feed and higher target recovery push operating pressure toward the upper end of the range. The high pressure requirement makes pump and vessel selection on SW systems materially different from BW systems — both equipment classes are higher-spec.

Standard seawater RO membranes are rated for 99.6% or higher salt rejection at standard test conditions. New SW elements on well-pre-treated full-seawater feed routinely deliver 99.7% to 99.8% rejection. The high rejection is required to produce drinkable or process-grade permeate from full-seawater feed — a 99% rejection rate would still leave permeate TDS at 350 ppm, above potable water guidelines.

Seawater RO systems typically operate at 35 to 45% recovery, with higher recovery achievable on multi-pass systems. The recovery limit is set by feed osmotic pressure rising as concentrate is produced — at high recovery, the concentrate side of the membrane sees osmotic pressures that exceed practical operating pressure. Marine watermakers often run at the lower end of the range; large land-based desalination plants tune toward the upper end.

Seawater RO membranes typically last three to seven years, set by pre-treatment quality, feed-water consistency, and clean-in-place frequency. Marine watermakers running intermittent duty with proper post-shutdown preservation can extend membrane life. Continuous-duty industrial SW plants on high-foulant feed may need replacement at the lower end of the range. Membrane replacement is triggered by salt passage rising above the system's design specification.
